1571294 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Mechanical Life	Switch Travel	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Ingress Protection	Features	Contact Rating @ Voltage	Actuator Orientation	Actuator Height off PCB, Vertical [z]	Operating Force	Circuit	Switch Function	Actuator Type	Mounting Type	Outline [y]	Outline [x]	Illumination
TE Connectivity AMP Connectors 1571294-3	1000000 Cycles	0.35 mm	Thermoplastic	85 °C	-35 °C	Gull Wing	IP67 - Dust Tight Waterproof	Sealed - Fully	0.05 A 24 VDC	Top Actuated	5 mm	160 gf	SPST-NO	Off-Mom	Standard	Surface Mount	7.3 mm	7.6 mm	Non-Illuminated

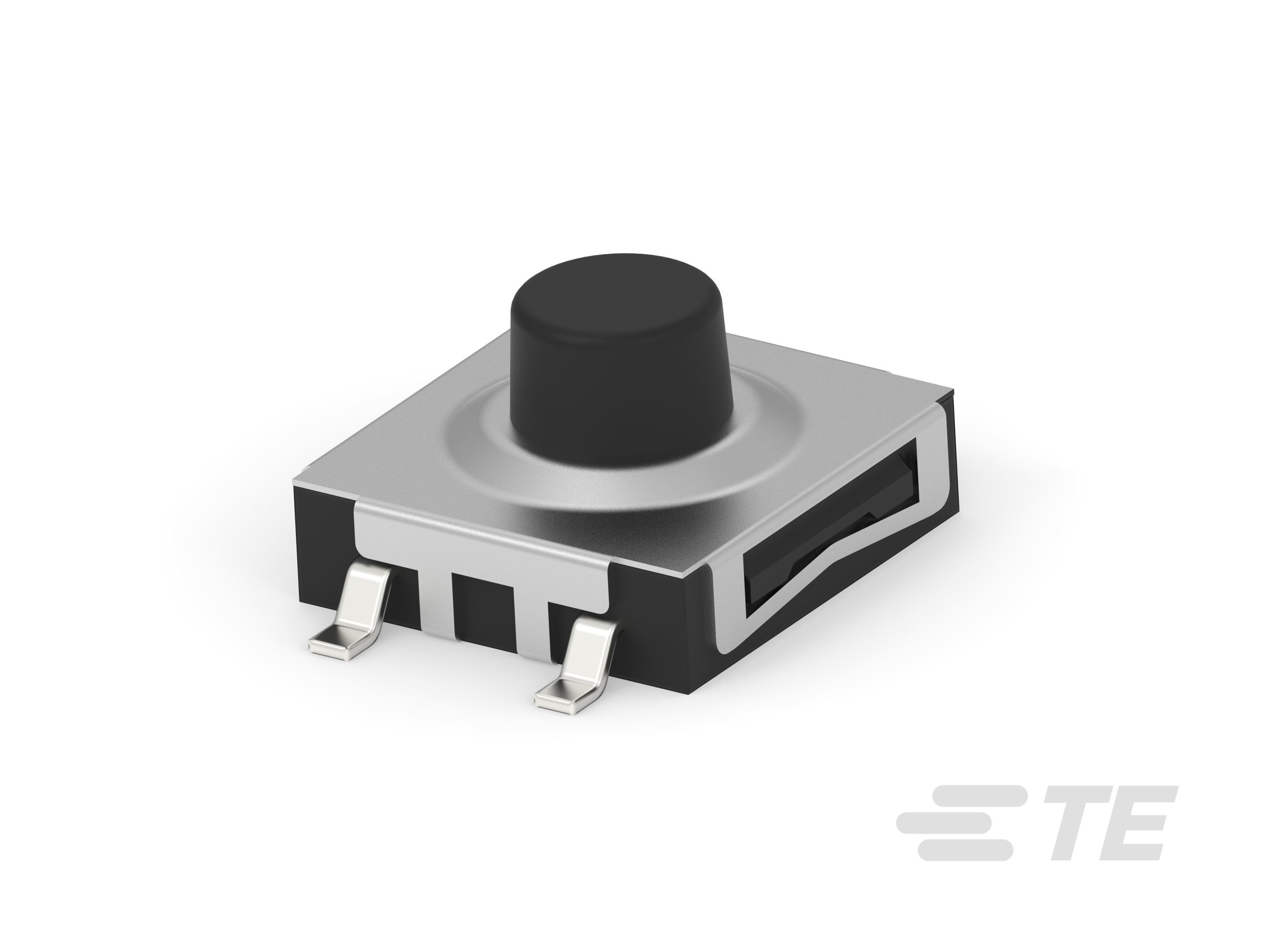

TE Connectivity AMP Connectors 1571294-1	1000000 Cycles	0.35 mm	Thermoplastic	85 °C	-35 °C	Gull Wing	IP67 - Dust Tight Waterproof	Sealed - Fully	0.05 A 24 VDC	Top Actuated	4.3 mm	160 gf	SPST-NO	Off-Mom	Standard	Surface Mount	7.3 mm	7.6 mm	Non-Illuminated
