1840572 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

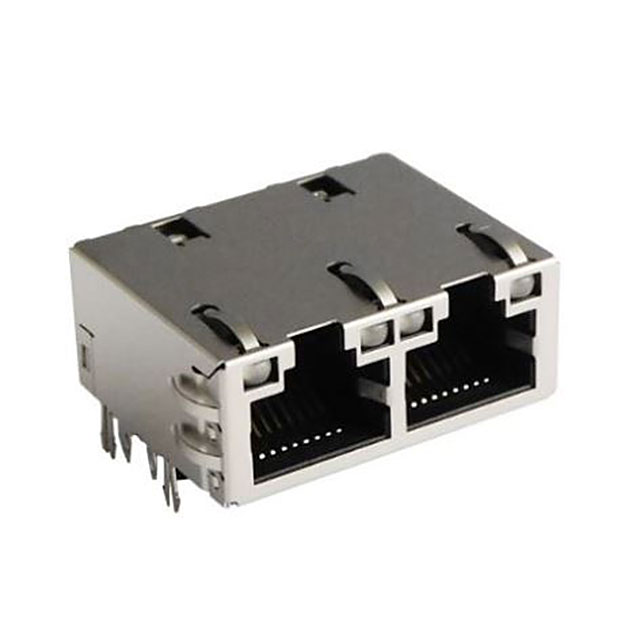

MODULAR CONNECTORS / ETHERNET CONNECTORS MAGJACK TU 2PORT 1GBT LED PRESS-FIT
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Tab Direction | Number of Ports | Connector Type | Number of Cores per Jack | Mounting Type | Features | Applications | Height Above Board [z] | Height Above Board [z] | LED Color | Shielding | Contact Finish | Orientation | Number of Rows | Termination | Contact Finish Thickness | Contact Finish Thickness | Shield Material | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 70 °C | 0 °C | Phosphor Bronze | Up | 2 | RJ45 | 8 | Through Hole | Board Guide Board Lock | 10 Base-T 100 Base-T 1000 Base-T | 0.53 in | 13.45 mm | Green Yellow | EMI Finger Shielded | Gold | 90 ° | 1 | Press-Fit | ||||
Bel Fuse Inc. | 70 °C | 0 °C | Phosphor Bronze | Up | 2 | RJ45 | 8 | Through Hole | Board Guide Board Lock | 10 Base-T 100 Base-T 1000 Base-T | 0.53 in | 13.45 mm | Green Yellow | EMI Finger Shielded | Gold | 90 ° | 1 | Press-Fit | 50 µin | 1.27 µm | Brass | Polyamide (PA) Nylon |
 Bel Fuse Inc. | 70 °C | 0 °C | Phosphor Bronze | Up | 2 | RJ45 | 8 | Through Hole | Board Guide Board Lock | 10 Base-T 100 Base-T 1000 Base-T | 0.53 in | 13.45 mm | Green - Green | EMI Finger Shielded | Gold | 90 ° | 1 | Press-Fit | 50 µin | 1.27 µm | Brass | Polyamide (PA) Nylon |
Bel Fuse Inc. | 70 °C | 0 °C | Phosphor Bronze | Up | 2 | RJ45 | 8 | Through Hole | Board Guide Board Lock | 10 Base-T 100 Base-T 1000 Base-T | 0.53 in | 13.45 mm | Green - Green | EMI Finger Shielded | Gold | 90 ° | 1 | Press-Fit |
