RXM-GPS Series

Catalog

RF RCVR GPS 1575.42MHZ MODULE

Part	Applications	Sensitivity	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Interface	Current - Receiving	Supplier Device Package	Modulation or Protocol	Package / Case	Antenna Connector	Operating Temperature [Max]	Operating Temperature [Min]	Frequency

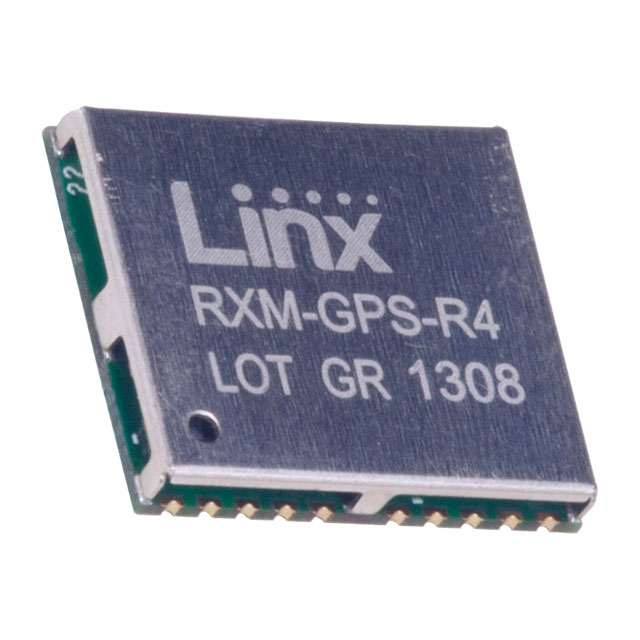

TE Connectivity AMP Connectors RXM-GPS-R4-T	Fleet Management Location Navigation Tracking	-160 dBm	Surface Mount	3.6 V	3 V	UART	33 mA	Module	GPS	20-SMD Module	PCB Surface Mount	85 °C	-40 C	1.57542 GHz
TE Connectivity AMP Connectors RXM-GPS-F4-T	Fleet Management Location Navigation Tracking	-159.5 dBm	Surface Mount	1.89 V	1.71 V	UART	27.5 mA	Module	GPS	20-SMD Module	PCB Surface Mount	85 °C	-30 ░C	1.57542 GHz

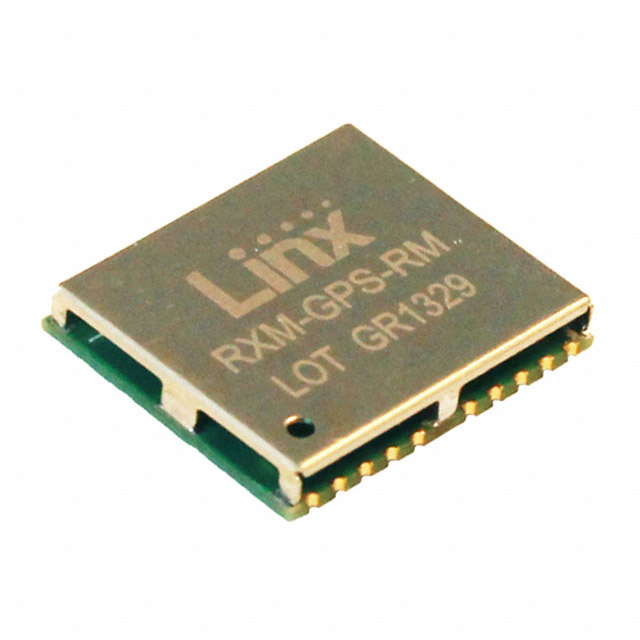

TE Connectivity AMP Connectors RXM-GPS-RM-T	Fleet Management Location Navigation Tracking	-161 dB	Surface Mount	4.3 V	3 V	UART	12 mA	Module	GPS	Module				1.57542 GHz

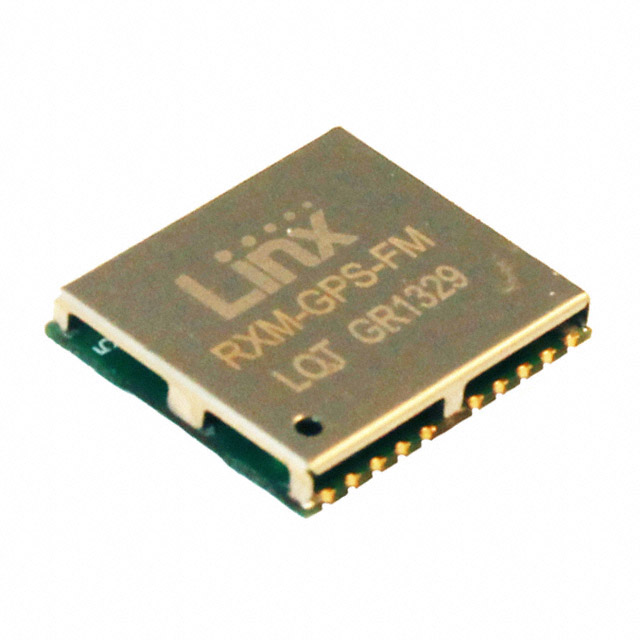

TE Connectivity AMP Connectors RXM-GPS-FM-T	Fleet Management Location Navigation Tracking	-161 dB	Surface Mount	4.3 V	3 V	UART	12 mA	Module	GPS	Module				1.57542 GHz
