2046 Series

Manufacturer: Oupiin

Catalog

PCB SOCKET, 20 PIN, STRAIGHT. 8.

Part	Contact Material	Contact Finish Thickness - Post	Contact Shape	Insulation Material	Termination	Contact Type	Number of Positions	Fastening Type	Features	Number of Positions Loaded	Connector Type	Contact Finish Thickness - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Current Rating (Amps)	Contact Finish - Mating	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Mounting Type	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]
Oupiin 2046-20G00SA	Copper Alloy	Flash	Square	Glass Filled Polyester Thermoplastic	Solder	Female Socket	20	Push-Pull	Polarizing Key	16	Socket	Flash	Gold	-55 C	105 ░C	0.1 in	2.54 mm	2	2 A	Gold	0.335 in	8.5 mm	0.1 "	2.54 mm	Through Hole	UL94 V-0	0.126 "	3.2 mm

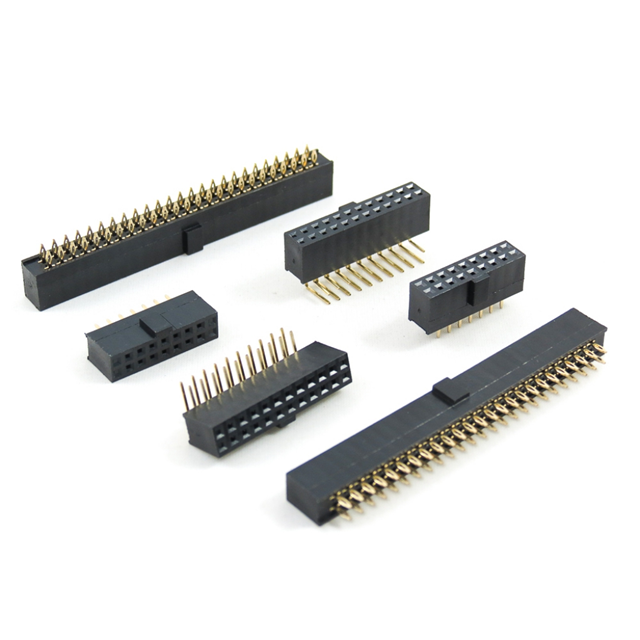

Oupiin 2046-10G00SA	Copper Alloy	Flash	Square	Glass Filled Polyester Thermoplastic	Solder	Female Socket	10	Push-Pull	Polarizing Key		Socket	Flash	Gold	-55 C	105 ░C	0.1 in	2.54 mm	2	2 A	Gold	0.335 in	8.5 mm	0.1 "	2.54 mm	Through Hole	UL94 V-0	0.126 "	3.2 mm
Oupiin 2046-50G00SA	Copper Alloy	Flash	Square	Glass Filled Polyester Thermoplastic	Solder	Female Socket	50	Push-Pull	Polarizing Key	46	Socket	Flash	Gold	-55 C	105 ░C	0.1 in	2.54 mm	2	2 A	Gold	0.335 in	8.5 mm	0.1 "	2.54 mm	Through Hole	UL94 V-0	0.126 "	3.2 mm
Oupiin 2046-16G00SA	Copper Alloy	Flash	Square	Glass Filled Polyester Thermoplastic	Solder	Female Socket	16	Push-Pull	Polarizing Key	12	Socket	Flash	Gold	-55 C	105 ░C	0.1 in	2.54 mm	2	2 A	Gold	0.335 in	8.5 mm	0.1 "	2.54 mm	Through Hole	UL94 V-0	0.126 "	3.2 mm
