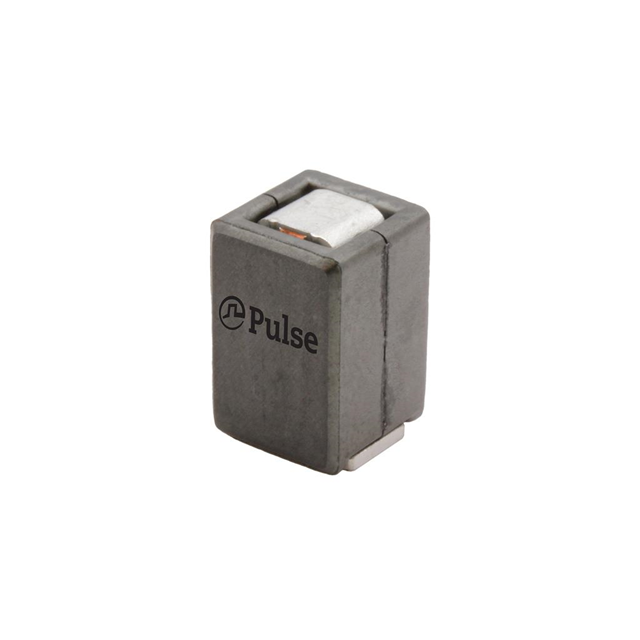

PGL6312 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD 90NH 100MV 70A 15%. DCR=.17MOHM
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Current - Saturation (Isat) | Shielding | Current Rating (Amps) | DC Resistance (DCR) | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Inductance Frequency - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 0.256 in | 6.5 mm | 6.5 mm | 0.256 " | 15 % | 90 A | Shielded | 68 A | 0.17 mOhm | Surface Mount | 10 mm | 0.394 in | 90 nH | Nonstandard | 130 °C | -40 C | 100 kHz |
