2012 Series
Manufacturer: Oupiin
Beta
⌘K

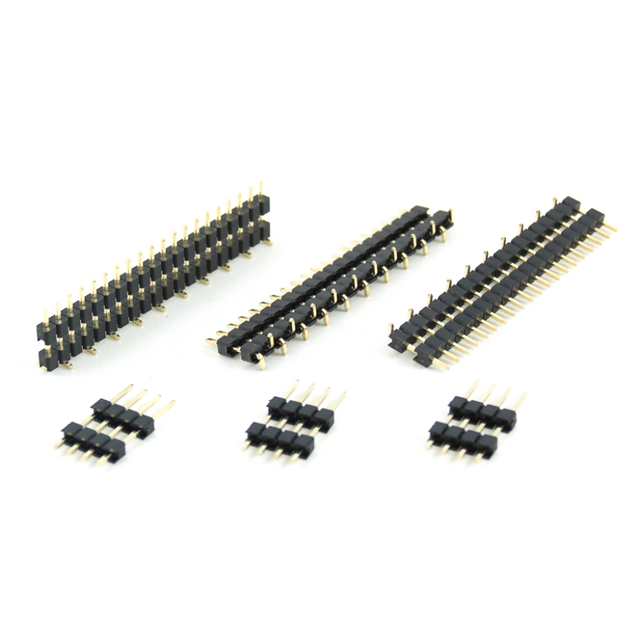

PIN HEADER, SINGLE ROW, 18 PIN,
| Part | Number of Positions | Number of Rows | Length - Overall Pin [x] | Length - Overall Pin [x] | Contact Finish Thickness - Post (Mating) [custom] | Length - Post (Mating) [x] | Length - Post (Mating) [x] | Length - Tail | Length - Tail | Color | Mounting Type | Contact Finish - Post (Mating) | Pitch | Pitch | Termination | Length - Stack Height | Length - Stack Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
18 | 1 | 0.488 in | 12.4 mm | Flash | 0.177 in | 4.5 mm | 8.3 mm | 0.327 in | Black | Through Hole | Gold | 0.1 " | 2.54 mm | Solder | |||
2 | 1 | 0.831 in | 21.1 mm | Flash | 0.22 " | 5.6 mm | 2.8 mm | 0.11 in | Black | Through Hole | Gold | 0.1 " | 2.54 mm | Solder | 0.5 in | 12.7 mm |
