DTE10 Series

Manufacturer: XP Power

Catalog

ISOLATED DC/DC CONVERTERS - CHASSIS MOUNT DC-DC CHASSIS MOUNT 10W

Part	Voltage - Isolation	Mounting Type	Current - Output (Max) [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Applications	Number of Outputs	Power (Watts)	Voltage - Input (Min) [Min]	Standard Number	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Approval Agency	Type	Voltage - Output 2	Current - Output (Max)

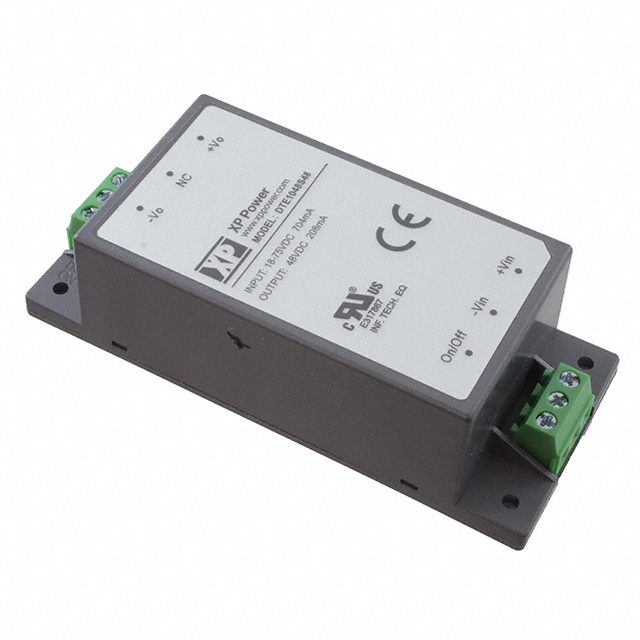

XP Power DTE1048S48	3000 V	Chassis Mount	208 mA	84 %	0.87 in	1.34 in	79 mm	34 mm	22 mm	3.11 "	75 V	ITE (Commercial)	1	10 W	18 V	62368-1	105 C	-40 °C	48 V	CB CE	Enclosed

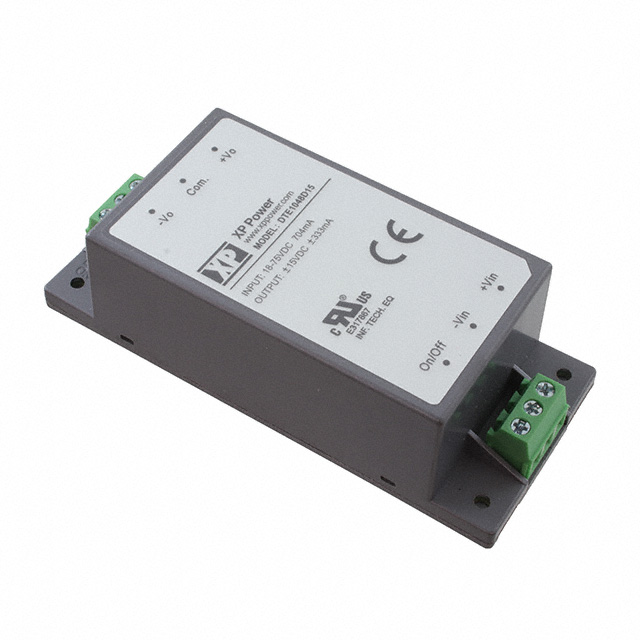

XP Power DTE1048D15	3000 V	Chassis Mount		86 %	0.87 in	1.34 in	79 mm	34 mm	22 mm	3.11 "	75 V	ITE (Commercial)	2	10 W	18 V	62368-1	105 C	-40 °C	15 V	CB CE	Enclosed	-15 V	333 mA

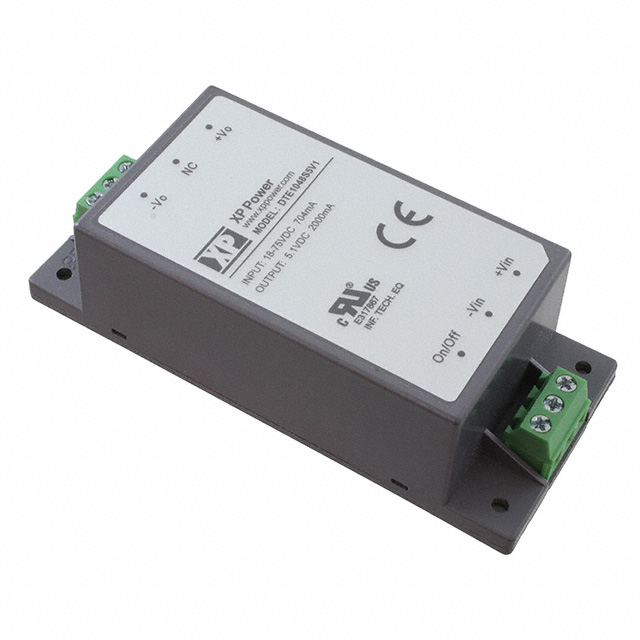

XP Power DTE1048S5V1	3000 V	Chassis Mount	2 A	84 %	0.87 in	1.34 in	79 mm	34 mm	22 mm	3.11 "	75 V	ITE (Commercial)	1	10 W	18 V	62368-1	105 C	-40 °C	5.1 V	CB CE	Enclosed
