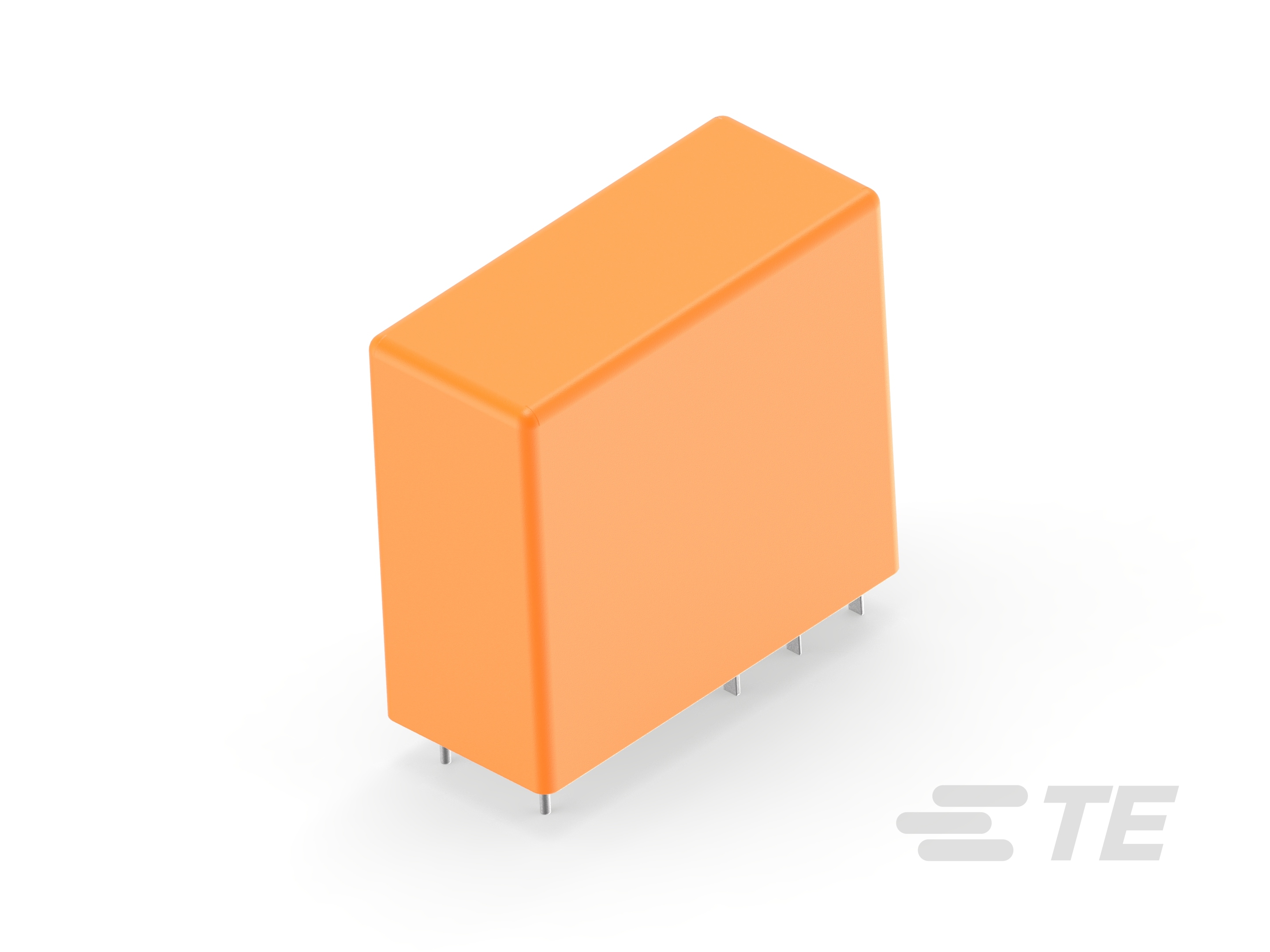

RP82A0 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE DPDT 8A 12V
| Part | Coil Voltage | Load - Max Switching | Must Operate Voltage | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage [Max] | Operate Time | Relay Type | Contact Material | Contact Form | Release Time | Termination Style | Seal Rating | Contact Rating (Current) | Approval Agency | Mounting Type | Must Release Voltage | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 12 VDC | 3200 VA | 9 VDC | Latching Single Coil | 70 °C | -40 C | 400 VAC | 9 ms | General Purpose | Silver Cadmium Oxide (AgCdO) | DPDT (2 Form C) | 3 ms | PC Pin | Sealed - Fully | 8 A | cURus VDE | Through Hole | ||
 TE Connectivity AMP Connectors | 24 VDC | 3200 VA | 16.8 VDC | Non Latching | 70 °C | -40 C | 400 VAC | 9 ms | General Purpose | DPDT (2 Form C) | 3 ms | PC Pin | Sealed - Fully | 8 A | cURus VDE | Through Hole | 2.4 VDC | 21.8 mA |
