ER506 Series

Catalog

GLASS PASSIVATED JUNCTION SUPERF

Part	Supplier Device Package	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]	Speed	Mounting Type	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Technology	Package / Case	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]

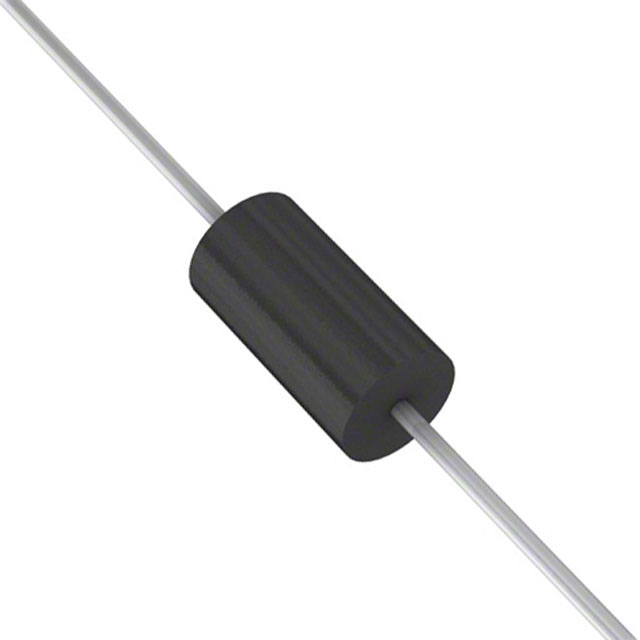

Panjit International Inc. ER506_T0_00001	DO-201AD	1 µA	65 pF	5 A	1.7 V	200 mA 500 ns	Through Hole	-55 °C	150 °C	Standard	DO-201AD Axial	35 ns	600 V
Panjit International Inc. ER506_R2_00001	DO-201AD	1 µA	65 pF	5 A	1.7 V	200 mA 500 ns	Through Hole	-55 °C	150 °C	Standard	DO-201AD Axial	35 ns	600 V
