MUBW50 Series

Catalog

IGBT MODULE 600V 75A 250W E2

Part	Current - Collector (Ic) (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Configuration	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Power - Max [Max]	Package / Case	Input	Voltage - Collector Emitter Breakdown (Max) [Max]	IGBT Type	Input Capacitance (Cies) @ Vce	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
LITTELFUSE MUBW50-06A7	75 A	2.4 V	Three Phase Inverter with Brake	800 µA	E2	250 W	E2	Three Phase Bridge Rectifier	600 V	NPT	2.8 nF	-40 C	125 °C	Chassis Mount

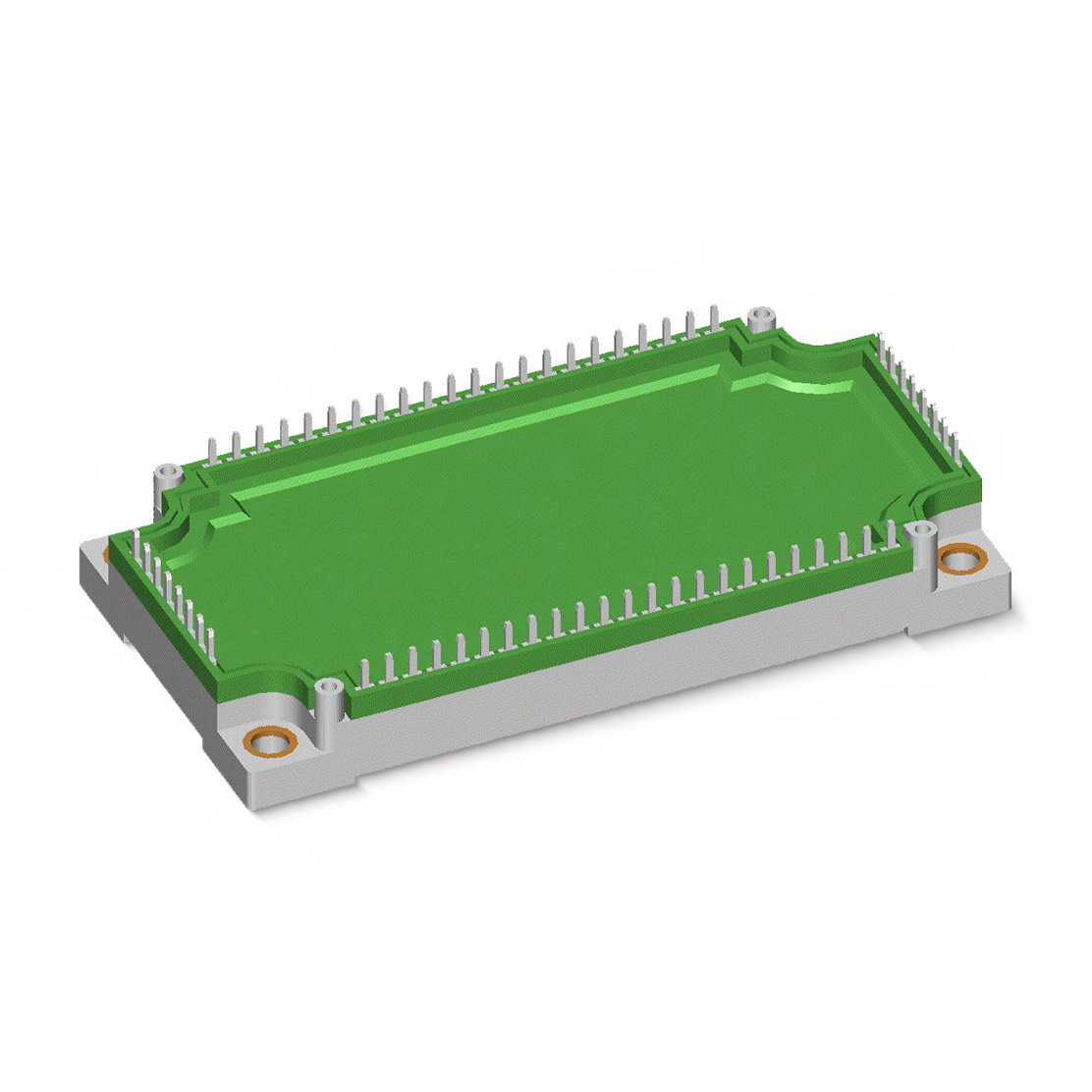

LITTELFUSE MUBW50-12T8	80 A	2.15 V	Three Phase Inverter with Brake	2.7 mA	E3	270 W	E3	Three Phase Bridge Rectifier	1200 V	Trench	3.5 nF	-40 C	125 °C	Chassis Mount
LITTELFUSE MUBW50-17T8	74 A	2.4 V	Three Phase Inverter with Brake	400 µA	E3	290 W	E3	Three Phase Bridge Rectifier	1700 V	Trench	4.4 nF	-40 C	125 °C	Chassis Mount
