MGXS Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 6W 6-60VIN 12V 0.5A PCB MNT SIP
| Part | Efficiency | Voltage - Isolation | Current - Output (Max) [Max] | Features | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Max) [Max] | Applications | Type | Voltage - Input (Min) [Min] | Package / Case | Number of Outputs | Mounting Type | Voltage - Output 1 | Power (Watts) | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

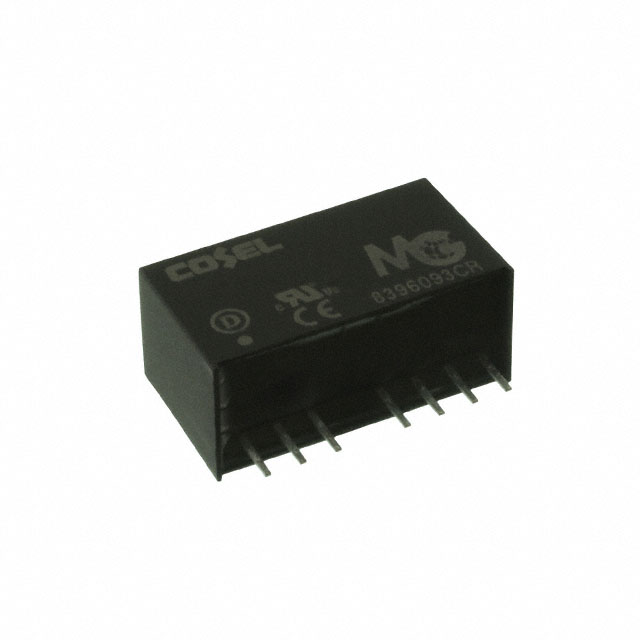

 Cosel USA, Inc. | 87 % | 1.5 kV | 500 mA | OCP Remote On/Off | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | 60 V | ITE (Commercial) | Isolated Module | 6 V | 8-SIP Module 7 Leads | 1 | Through Hole | 12 V | 6 W | -40 °C | 85 °C |
 Cosel USA, Inc. | 88 % | 1.5 kV | 1.2 A | OCP Remote On/Off | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | 60 V | ITE (Commercial) | Isolated Module | 6 V | 8-SIP Module 7 Leads | 1 | Through Hole | 5 V | 6 W | -40 °C | 85 °C |
 Cosel USA, Inc. | 85 % | 1.5 kV | 1.6 A | OCP Remote On/Off | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | 60 V | ITE (Commercial) | Isolated Module | 6 V | 8-SIP Module 7 Leads | 1 | Through Hole | 3.3 V | 5.3 W | -40 °C | 85 °C |

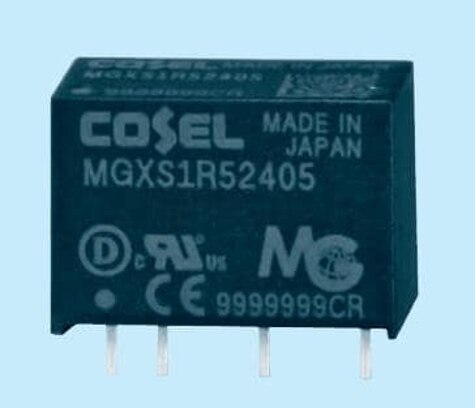

Cosel USA, Inc. | 79 % | 1.5 kV | 0.3 A | OCP | 0.47 " | 8.5 mm | 0.67 " | 12 mm | 0.33 " | 17 mm | 60 V | ITE (Commercial) | Isolated Module | 6 V | 6-SIP Module 4 Leads | 1 | Through Hole | 5 V | 1.5 W | -40 °C | 85 °C |
 Cosel USA, Inc. | 87 % | 1.5 kV | 400 mA | OCP Remote On/Off | 0.47 " | 9.5 mm | 0.87 in | 12 mm | 0.37 in | 22 mm | 60 V | ITE (Commercial) | Isolated Module | 6 V | 8-SIP Module 7 Leads | 1 | Through Hole | 15 V | 6 W | -40 °C | 85 °C |
Cosel USA, Inc. | 1.5 kV | 100 mA | OCP | 0.47 " | 8.5 mm | 0.67 " | 12 mm | 0.33 " | 17 mm | 60 V | ITE (Commercial) | Isolated Module | 6 V | 6-SIP Module 4 Leads | 1 | Through Hole | 15 V | 1.5 W | -40 °C | 85 °C | |

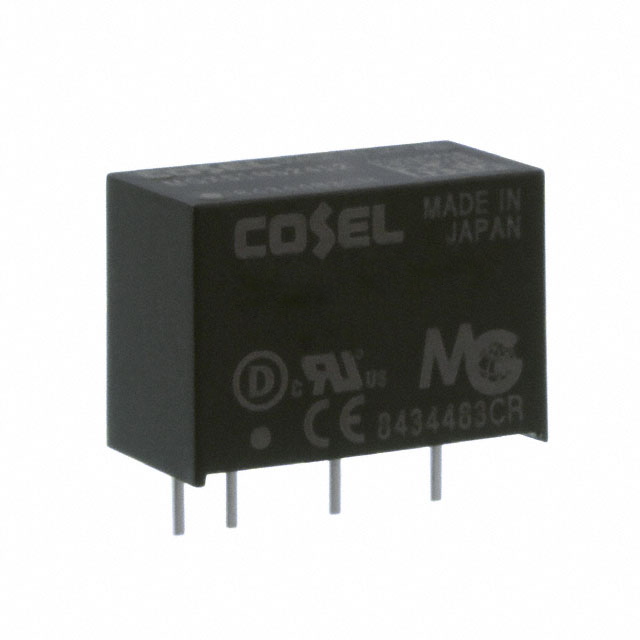

Cosel USA, Inc. | 1.5 kV | 130 mA | OCP | 0.47 " | 8.5 mm | 0.67 " | 12 mm | 0.33 " | 17 mm | 60 V | ITE (Commercial) | Isolated Module | 6 V | 6-SIP Module 4 Leads | 1 | Through Hole | 12 V | 1.6 W | -40 °C | 85 °C | |
 Cosel USA, Inc. | 77 % | 1.5 kV | 400 mA | OCP | 0.47 " | 8.5 mm | 0.67 " | 12 mm | 0.33 " | 17 mm | 60 V | ITE (Commercial) | Isolated Module | 6 V | 6-SIP Module 4 Leads | 1 | Through Hole | 3.3 V | 1.3 W | -40 °C | 85 °C |
