CR-2025 Series

Catalog

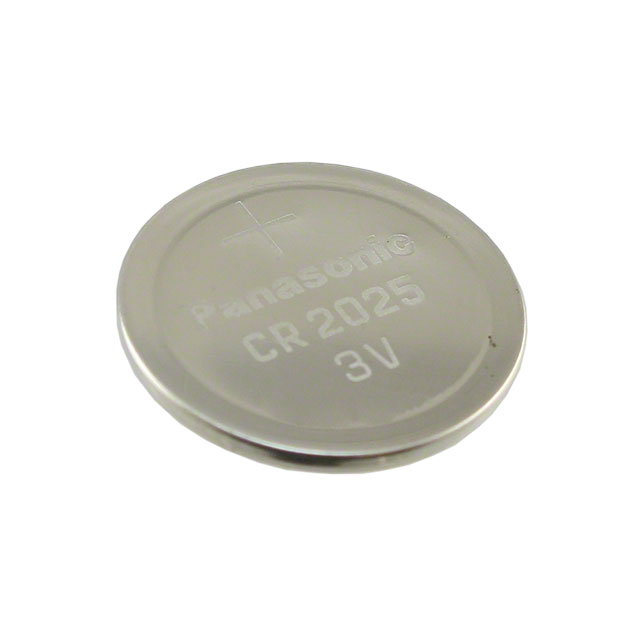

BATTERY LITHIUM 3V COIN 20MM

Part	Termination Style	Battery Chemistry [custom]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Voltage - Rated	Capacity	Battery Cell Size	Battery Cell Size	Discharge Rate	Shipping Info	Battery Chemistry
Panasonic Energy CR-2025/F2N	Requires Holder	Lithium Manganese Dioxide	20 mm	2.5 mm	0.1 "	0.79 in	3 VDC	165 mAh	20 mm	Coin
Panasonic Energy CR-2025L/BD	Requires Holder	Lithium Manganese Dioxide	20 mm	2.5 mm	0.1 "	0.79 in	3 VDC	165 mAh	20 mm	Coin
Panasonic Energy CR-2025/F2N	Requires Holder		20 mm	2.5 mm	0.1 "	0.79 in	3 VDC	165 mAh	20 mm	Coin	200 µA	Due to restrictions only ground shipment is allowed.	Lithium
Panasonic Energy CR-2025L/BD	Requires Holder	Lithium Manganese Dioxide	20 mm	2.5 mm	0.1 "	0.79 in	3 VDC	165 mAh	20 mm	Coin		Due to restrictions only ground shipment is allowed.
