5977701 Series

Manufacturer: DIALIGHT

Catalog

LED GREEN/RED CLEAR 4SMD

Part	Height (Max) [Max] [z]	Package / Case	Wavelength - Peak	Mounting Type	Voltage - Forward (Vf) (Typ)	Lens Transparency	Current - Test [custom]	Current - Test [custom]	Configuration	Color	Wavelength - Dominant	Lens Style	Lens Size [x]	Lens Size [y]	Lens Color	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating [custom]	Millicandela Rating [custom]	Viewing Angle	Supplier Device Package	Height (Max) [z]	Wavelength - Peak	Millicandela Rating	Lens Size [diameter]	Wavelength - Dominant
DIALIGHT 5977701502F	1.3 mm	4-SMD No Lead	570nm Green 650nm Red	Surface Mount	2 V 2.2 V	Clear	20 mA	20 mA	Independent	Green Red	575 nm 653 nm	Rectangle with Flat Top	2.3 mm	2.1 mm	Colorless	3 mm	2.5 mm	6.3 mcd	16 mcd	100 °	4-SMD

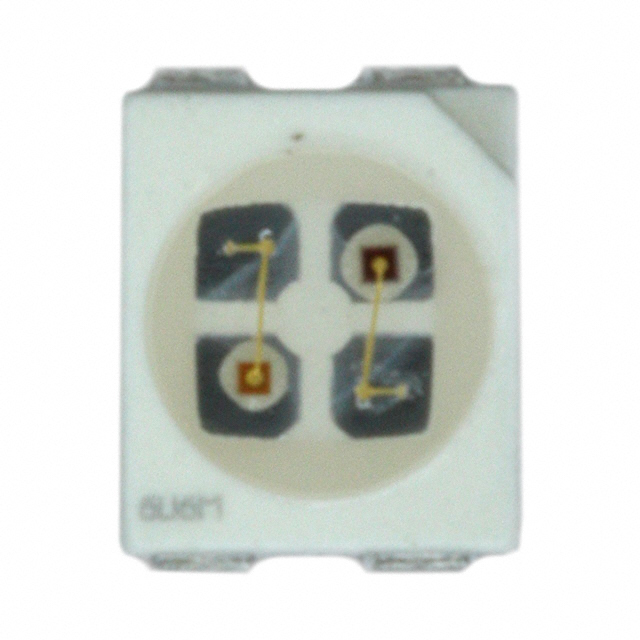

DIALIGHT 5977701207F		4-PLCC		Surface Mount	2 V 2.1 V	Clear	20 mA	20 mA	Independent	Green Red		Round with Flat Top			Colorless					120 °	4-PLCC	1.9 mm	565 nm 630 nm	16 mcd 16 mcd	2.39 mm	570nm Green 628nm Red

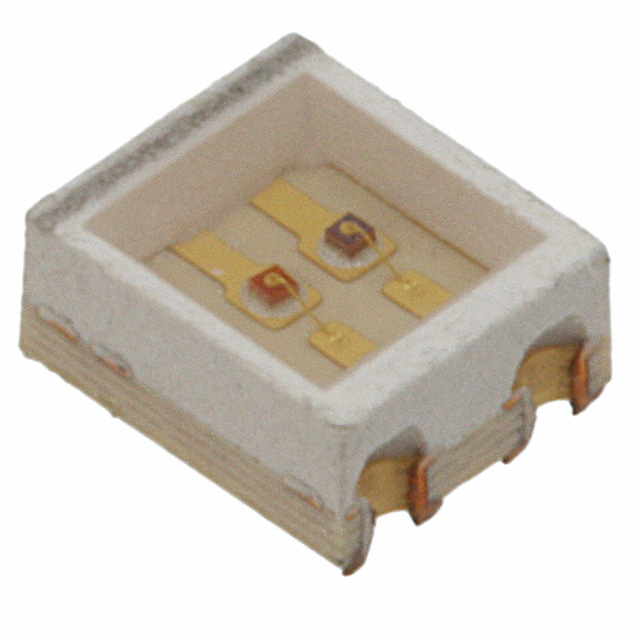

DIALIGHT 5977701507F	1.3 mm	4-SMD No Lead	570nm Green 650nm Red	Surface Mount	2 V 2.2 V	Clear	20 mA	20 mA	Independent	Green Red	575 nm 653 nm	Rectangle with Flat Top	2.3 mm	2.1 mm	Colorless	3 mm	2.5 mm	6.3 mcd	16 mcd	100 °	4-SMD
DIALIGHT 5977701207LF		4-PLCC		Surface Mount	2 V 2.1 V	Clear	20 mA	20 mA		Green Red		Round with Flat Top			Colorless					120 °	4-PLCC	1.9 mm	565 nm 630 nm	16 mcd 16 mcd	2.39 mm	570nm Green 628nm Red
