OPB9001 Series

Catalog

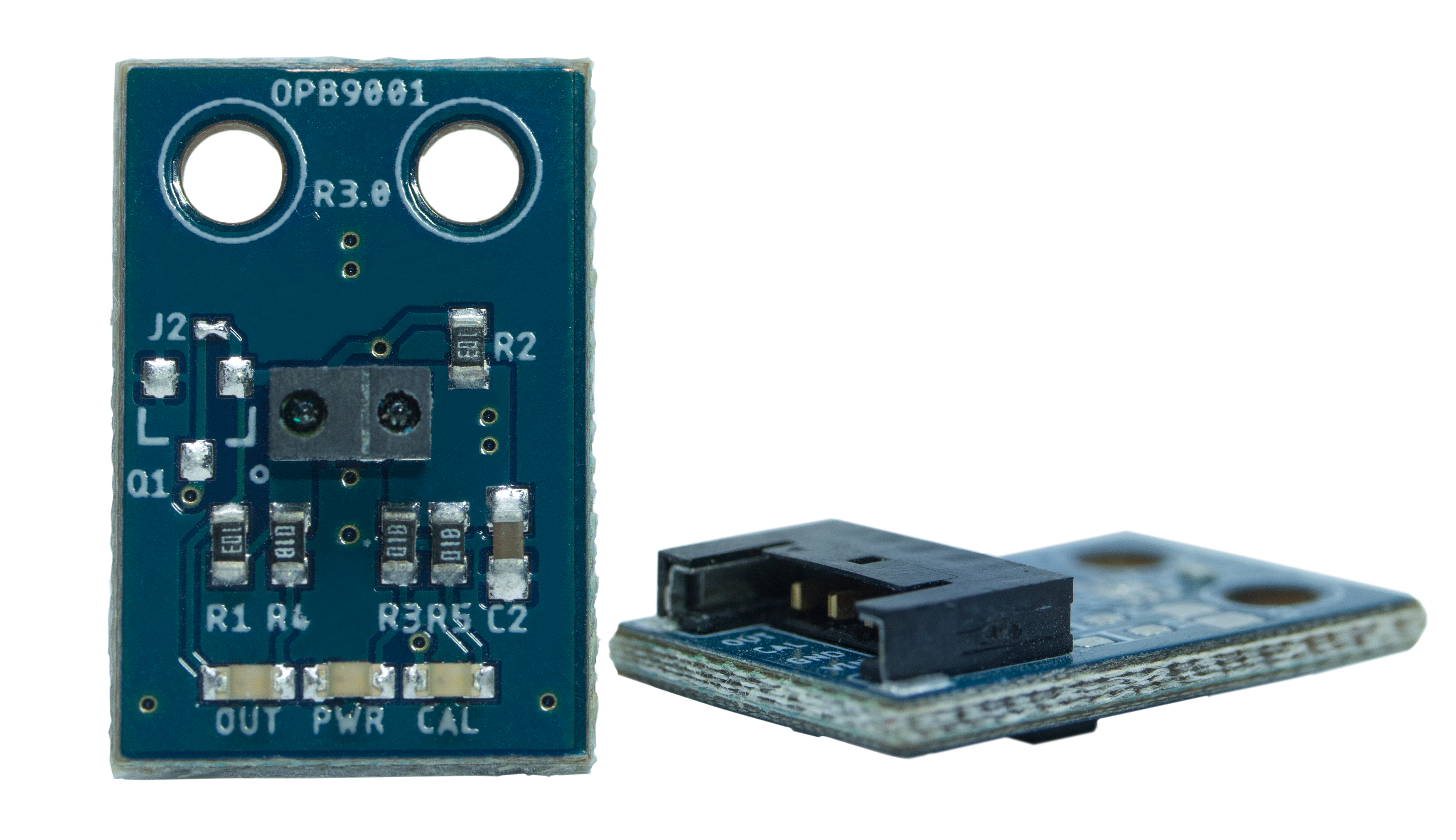

REF OPTICAL SENSOR MODULE 4.5-30V

Part	Sensing Object	Package / Case	Mounting Type	Sensing Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Current - Supply	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Sensing Distance [Max]
TT Electronics/BI OPB9001A	White Paper	Module	User Defined	Reflective	30 VDC	4.5 V	NPN - Open Collector	16 mA	50 mm	2.5 mm	0.098 "	1.969 "
TT Electronics/BI OPB9001AC	White Paper	Module	User Defined	Reflective	30 VDC	4.5 V	NPN - Open Collector	16 mA	50 mm	2.5 mm	0.098 "	1.969 "
TT Electronics/BI OPB9001B	White Paper	Module	User Defined	Reflective	24 V	4.5 V	NPN - Open Collector	16 mA	50 mm	2.5 mm	0.098 "	1.969 "
TT Electronics/BI OPB9001C	White Paper	Module	User Defined	Reflective	5.5 V	3.3 V	NPN - Open Collector	16 mA	50 mm	2.5 mm	0.098 "	1.969 "
