726-005 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 5POS 0.125
| Part | Termination Rows | Material - Insulation | Read Out | Number of Rows | Contact Type | Card Type | Card Thickness [Max] | Card Thickness [Min] | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Contact Finish | Contact Material | Pitch | Pitch | Termination | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Color | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

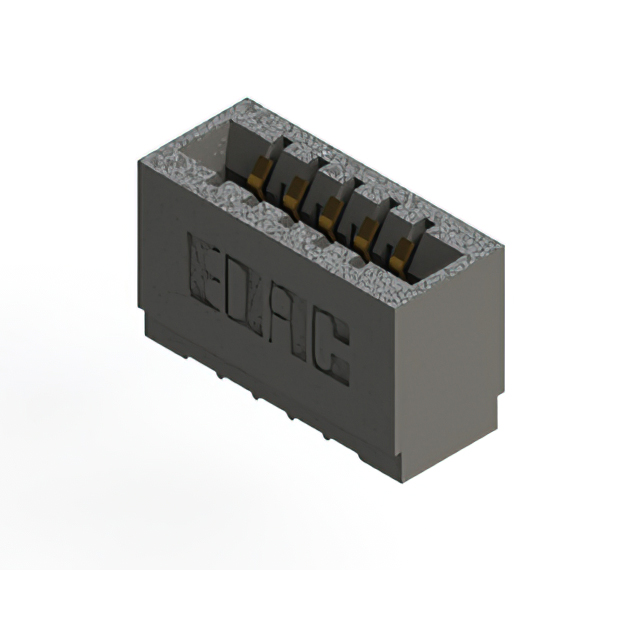

 EDAC Inc. | 1 | Polyester Thermoplastic | Single | 1 | Cantilever | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | -40 C | 105 ░C | 5 | Gold | Copper Alloy | 3.18 mm | 0.125 in | Press-Fit | Through Hole | 30 Áin | 0.76 Ám | Black | Female |

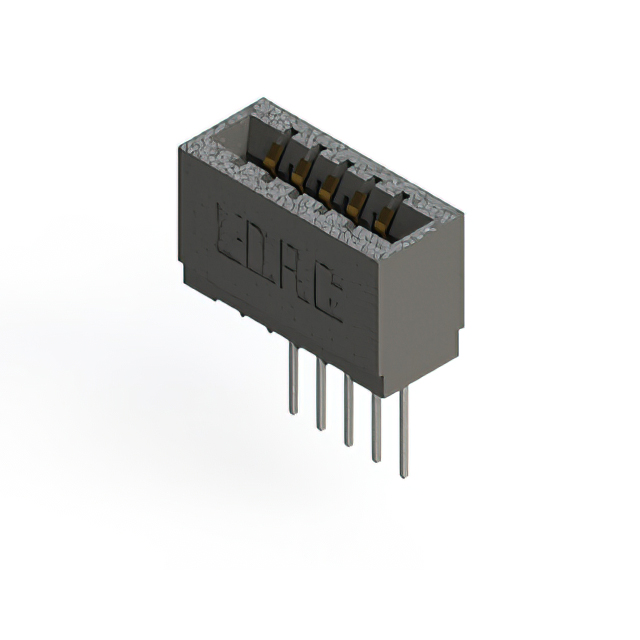

 EDAC Inc. | 1 | Polyester Thermoplastic | Single | 1 | Cantilever | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | -40 C | 105 ░C | 5 | Gold | Copper Alloy | 3.18 mm | 0.125 in | Press-Fit Wire Wrap | Through Hole | 30 Áin | 0.76 Ám | Black | Female |
 EDAC Inc. | 1 | Polyester Thermoplastic | Single | 1 | Cantilever | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | -40 C | 105 ░C | 5 | Gold | Copper Alloy | 3.18 mm | 0.125 in | Press-Fit | Through Hole | 30 Áin | 0.76 Ám | Black | Female |
 EDAC Inc. | 1 | Polyester Thermoplastic | Single | 1 | Cantilever | Non Specified - Single Edge | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 5 | -40 C | 105 ░C | 5 | Gold | Copper Alloy | 3.18 mm | 0.125 in | Press-Fit Wire Wrap | Through Hole | 30 Áin | 0.76 Ám | Black | Female |
