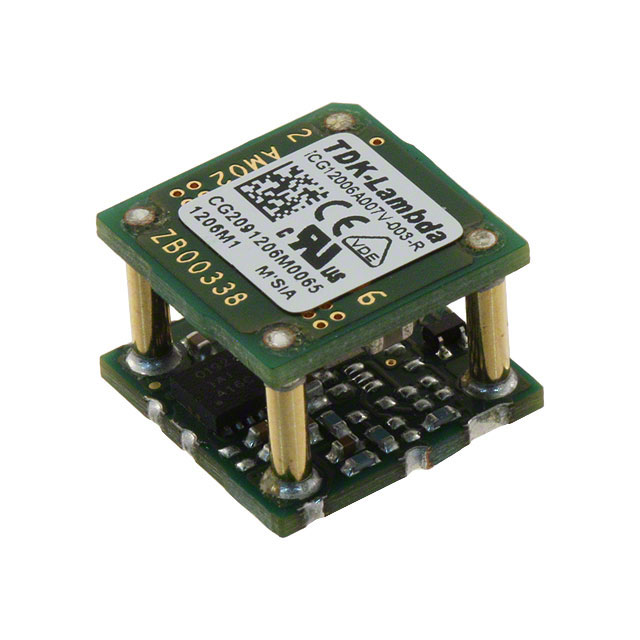

ICG12006 Series

Catalog

NON ISOLATED POL DC/DC CONVERTER, ITE, DOSA, 33 W, 700 MV, 5.5 V, 6 A

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Type	Current - Output (Max) [Max]	Package / Case	Mounting Type	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Control Features	Power (Watts)	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Supplier Device Package
TDK Corporation ICG12006A007V-003-R	12.2 mm	0.48 in	0.48 in	12.2 mm	8.5 mm	0.33 in	Non-Isolated PoL Module	6 A	10-SMD Module	Surface Mount	1	94 %	4.5 V	14 V	Active Low Enable	33 W	5.5 V	0.7 V	Remote On/Off UVLO	115 °C	-40 C	ITE (Commercial)
TDK Corporation ICG12006A007V-001-R	12.2 mm	0.48 in	0.48 in	12.2 mm	8.5 mm	0.33 in	Non-Isolated PoL Module	6 A	10-SMD Module	Surface Mount	1	94 %	4.5 V	14 V		33 W	5.5 V	0.7 V	OCP Remote On/Off	115 °C	-40 C	ITE (Commercial)	10-SMD Module
