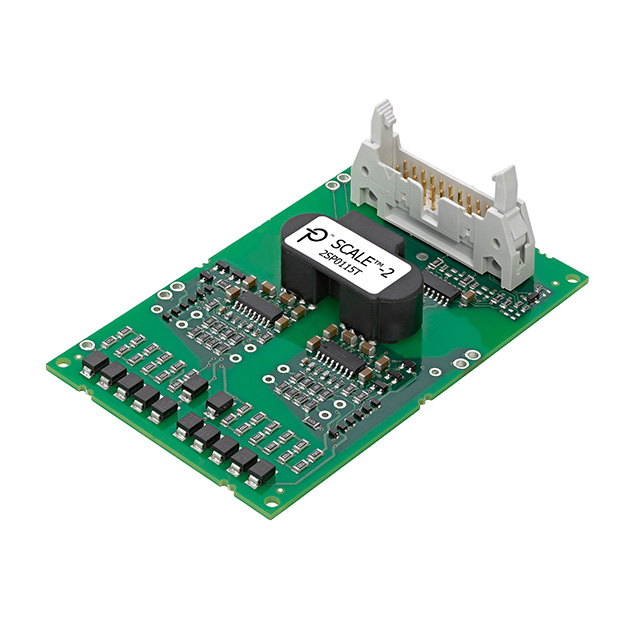

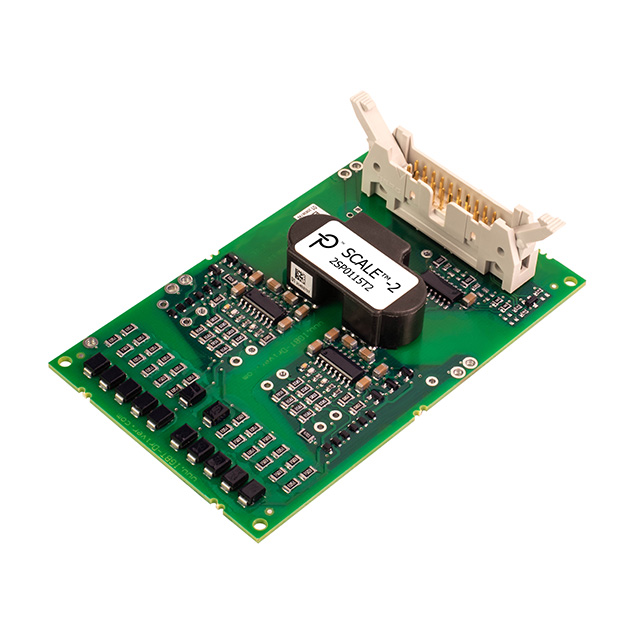

2SP0115 Series

Catalog

IGBT HALF-BRIDGE; SCALE™-2; 1.2KV; 14.5÷15.5VDC; 8÷15A

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Rise / Fall Time (Typ)	Driven Configuration	Package / Case	Gate Type	Operating Temperature [Max]	Operating Temperature [Min]	High Side Voltage - Max (Bootstrap) [Max]	Supplier Device Package	Channel Type	Number of Drivers	Mounting Type
POWER INTEGRATIONS 2SP0115T2A0-12	15.5 V	14.5 V	8 A	15 A	5 ns 10 ns	Half-Bridge	Module	IGBT	85 C	-20 °C	1.2 kV	Module	Independent	2	Surface Mount
POWER INTEGRATIONS 2SP0115T2B0-06	15.5 V	14.5 V	8 A	15 A	5 ns 10 ns	Half-Bridge	Module	IGBT	85 C	-20 °C	600 V	Module	Independent	2	Surface Mount
POWER INTEGRATIONS 2SP0115T2A0-17	15.5 V	14.5 V	8 A	15 A	5 ns 10 ns	Half-Bridge	Module	IGBT	85 C	-20 °C	1700 V	Module	Independent	2	Surface Mount
POWER INTEGRATIONS 2SP0115T2D0-12	15.5 V	14.5 V	15 A	15 A	5 ns 10 ns	Half-Bridge	Module	IGBT	85 °C	-40 C	1.2 kV	Module	Independent	2	Chassis Mount
POWER INTEGRATIONS 2SP0115T2B0-12	15.5 V	14.5 V	8 A	15 A	5 ns 10 ns	Half-Bridge	Module	IGBT	85 C	-20 °C	1.2 kV	Module	Independent	2	Surface Mount
POWER INTEGRATIONS 2SP0115T2C0-12	15.5 V	14.5 V	8 A	15 A	5 ns 10 ns	Half-Bridge	Module	IGBT	85 C	-40 ¯C	1.2 kV	Module	Independent	2	Surface Mount
