951240 Series

Catalog

CONN HEADER R/A 40POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish - Post	Material Flammability Rating	Shrouding	Contact Type	Contact Material	Number of Rows [custom]	Connector Type	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions Loaded	Number of Positions	Contact Length - Post [custom]	Contact Length - Post	Contact Finish Thickness - Mating	Contact Shape	Mounting Type	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Contact Finish - Mating	Fastening Type	Insulation Material	Features
3M Electronic Specialty 951240-7622-AR	39.4 çin	1 çm	-55 C -40 C	105 ░C 125 °C	Solder	Tin	UL94 V-0	Unshrouded	Male Pin	Copper Alloy	2	Header Header Cuttable	0.173 in	4.4 mm	0.079 "	2 mm	0.059 in	1.5 mm	All	40	0.11 in	2.79 mm	Flash	Square	Right Angle Through Hole	4 mm	0.157 in	2 mm	0.079 in	Black	Gold	Push-Pull	Thermoplastic

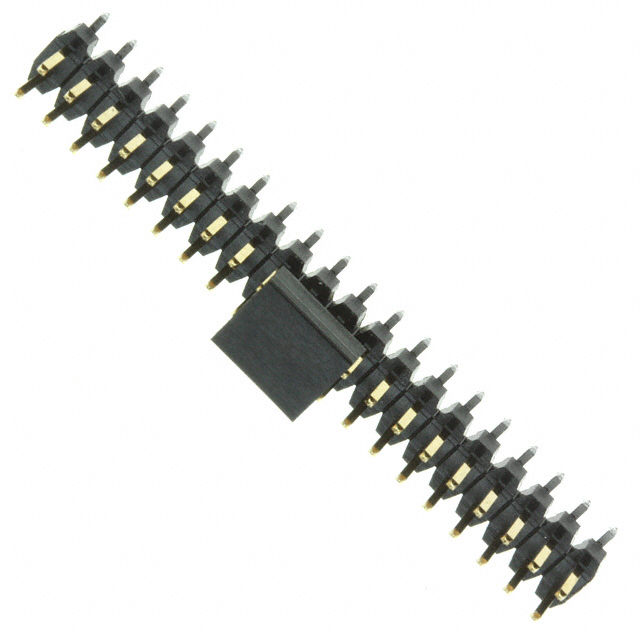

3M Electronic Specialty 951240-2520-AR-PR	39.4 çin	1 çm	-25 °C	105 ░C	Solder	Tin	UL94 V-0	Unshrouded	Male Pin	Copper Alloy	2	Header	0.157 in	4 mm	0.079 "	2 mm			All	40			Flash	Square	Surface Mount	1.52 mm	0.06 in	2 mm	0.079 in	Black	Gold	Push-Pull	Thermoplastic	Pick and Place
3M Electronic Specialty 951240-4620-AR-PR	39.4 çin	1 çm	-25 °C	105 ░C	Solder	Tin	UL94 V-0	Unshrouded	Male Pin	Copper Alloy	2	Header	0.175 in	4.45 mm	0.079 "	2 mm			All	40			Flash	Square	Right Angle Surface Mount	4 mm	0.157 in	2 mm	0.079 in	Black	Gold	Push-Pull	Thermoplastic	Pick and Place
