PT06E Series

Manufacturer: Amphenol Aerospace Operations

Catalog

Catalog

CONN PLUG FMALE 10P SOLDER CUP

...

Part	Backshell Material, Plating	Insert Material	Applications	Contact Material	Termination	Shell Finish	Operating Temperature (Max)	Operating Temperature (Min)	Qualification	Orientation	Shell Size - Insert Width	Shell Size - Insert Length	Mounting Type	Connector Type	Contact Finish - Mating	Features	Fastening Type	Color	Primary Material	Shell Material	Ingress Protection	Shielding	Number of Positions	Backshell Material	Plating	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Voltage Rating	Cable Opening
Amphenol Aerospace Operations PT06E-12-10S(SR)	Aluminum Olive Drab Cadmium	Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Solder Cup	Cadmium Olive Drab Chromate	125 °C	-55 °C	MIL-DTL-26482 Series I	N (Normal)	10 mm	12 mm	Free Hanging (In-Line)	Female Sockets Plug	Gold	Strain Relief	Bayonet Lock	Olive Drab	Metal	Aluminum	Environment Sealed	Unshielded	10
Amphenol Aerospace Operations PT06E18-11PW-476		Neoprene	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy	Solder Cup	Black Zinc Cobalt	125 °C	-55 °C	MIL-DTL-26482 Series I	W	11 mm	18 mm	Free Hanging (In-Line)	Male Pins Plug	Gold		Bayonet Lock	Black	Metal	Aluminum	Environment Resistant	Unshielded	11	Aluminum	Black Zinc Cobalt
Amphenol Aerospace Operations PT06E-16-23S	Aluminum Olive Drab Cadmium	Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Solder Cup	Cadmium Olive Drab Chromate	125 °C	-55 °C	MIL-DTL-26482 Series I	N (Normal)			Free Hanging (In-Line)	Female Sockets Plug	Gold	Backshell Coupling Nut	Bayonet Lock	Olive Drab	Metal	Aluminum	Environment Sealed	Unshielded	23			23	16 S

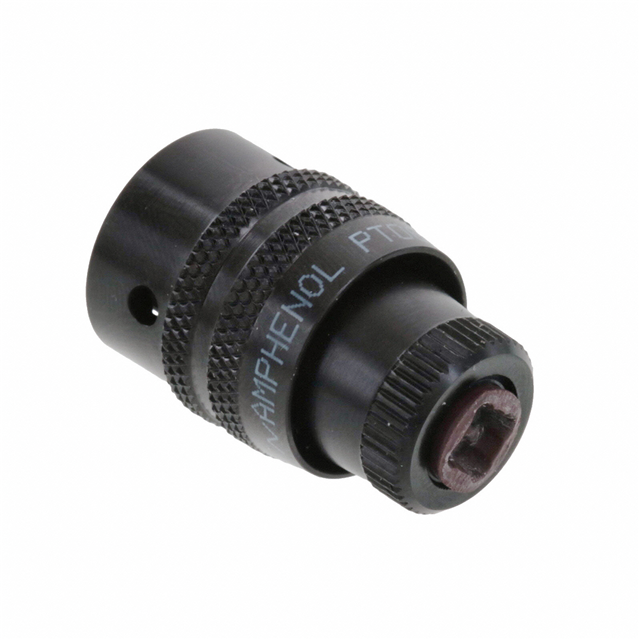

Amphenol Aerospace Operations PT06E-8-4S(025)		Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Solder Cup	Black Zinc Cobalt	125 °C	-55 °C	MIL-DTL-26482 Series I	N (Normal)	4 mm	8 mm	Free Hanging (In-Line)	Female Sockets Plug	Gold	Backshell Coupling Nut	Bayonet Lock	Black	Metal	Aluminum	Environment Sealed	Unshielded	4	Aluminum	Black Zinc Cobalt
Amphenol Aerospace Operations PT06E-10-5P(SR)	Aluminum Olive Drab Cadmium	Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Solder Cup	Cadmium Olive Drab Chromate	125 °C	-55 °C	MIL-DTL-26482 Series I	N (Normal)	5 mm	10 mm	Free Hanging (In-Line)	Male Pins Plug	Gold	Strain Relief	Bayonet Lock	Olive Drab	Metal	Aluminum	Environment Sealed	Unshielded	5
Amphenol Aerospace Operations PT06E-12-10P(470)		Neoprene	Aerospace Industrial Instrumentation Mass Transit Military	Copper Alloy	Solder Cup	Black Zinc Cobalt	125 °C	-55 °C	MIL-DTL-26482 Series I	N (Normal)	10 mm	12 mm	Free Hanging (In-Line)	Male Pins Plug	Gold	Backshell Cable Clamp Coupling Nut	Bayonet Lock	Black	Metal	Aluminum	Environment Sealed	Unshielded	10	Aluminum	Black Zinc Cobalt
Amphenol Aerospace Operations PT06E16-8P-SR	Aluminum Olive Drab Cadmium	Neoprene	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy	Solder Cup	Cadmium Olive Drab Chromate	125 °C	-55 °C	MIL-DTL-26482 Series I	N (Normal)	8 mm	16 mm	Free Hanging (In-Line)	Male Pins Plug	Gold	Strain Relief	Bayonet Lock	Olive Drab	Metal	Aluminum	Environment Resistant	Unshielded	8					1000 V	0.5 in
Amphenol Aerospace Operations PT06E8-3S-470		Neoprene	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy	Solder Cup	Black Zinc Cobalt	125 °C	-55 °C	MIL-DTL-26482 Series I	N (Normal)	3 mm	8 mm	Free Hanging (In-Line)	Female Sockets Plug	Gold	Backshell Coupling Nut Strain Relief	Bayonet Lock	Black	Metal	Aluminum	Environment Resistant	Unshielded	3	Aluminum	Black Zinc Cobalt			600 V
Amphenol Aerospace Operations PT06E14-12SX-SR	Aluminum Olive Drab Cadmium	Neoprene	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy	Solder Cup	Cadmium Olive Drab Chromate	125 °C	-55 °C	MIL-DTL-26482 Series I	X	12 mm	14 mm	Free Hanging (In-Line)	Female Sockets Plug	Gold	Strain Relief	Bayonet Lock	Olive Drab	Metal	Aluminum	Environment Resistant	Unshielded	12
Amphenol Aerospace Operations PT06E20-39S-SR	Aluminum Olive Drab Cadmium	Neoprene	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Copper Alloy	Solder Cup	Cadmium Olive Drab Chromate	125 °C	-55 °C	MIL-DTL-26482 Series I	N (Normal)			Free Hanging (In-Line)	Female Sockets Plug	Gold	Strain Relief	Bayonet Lock	Olive Drab	Metal	Aluminum	Environment Resistant	Unshielded	39			39	20
