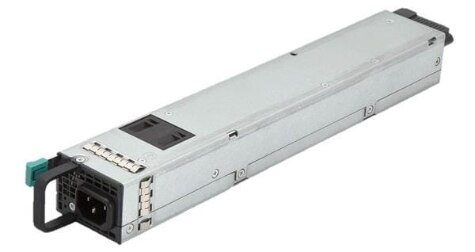

D1U54P-W-1500-12-Hxx Series
Rack Mount Power Supplies 1500 12V 3.3VSBY FBV AIR
Manufacturer: Murata Electronics
Catalog
Rack Mount Power Supplies 1500 12V 3.3VSBY FBV AIR
Beta
⌘K
Rack Mount Power Supplies 1500 12V 3.3VSBY FBV AIR
Rack Mount Power Supplies 1500 12V 3.3VSBY FBV AIR
Rack Mount Power Supplies 1500 12V 3.3VSBY FBV AIR
| Part | Current - Output 1 | Power (Watts) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Voltage - Isolation | Approval Agency | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Features | Type | Applications | Number of Outputs | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Murata Electronics | 125 A | 1500 W | 2.15 in | 12.66 " | 40 mm | 54.5 mm | 321.5 mm | 1.57 " | 3000 V | BSMI cCSAus CE CQC TUV | Rack Mount | 45 °C | -5 °C | 264 VAC | 90 VAC | 12 V | Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input | Front End | ITE (Commercial) | 1 | 91 % |
