140-507 Series

Manufacturer: EDAC Inc.

Catalog

CONN RCPT HSG 7POS 2.00MM

Part	Note	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Features	Mounting Type	Insulation Material	Contact Termination	Connector Type	Fastening Type	Pitch [x]	Pitch [x]	Contact Type	Number of Positions	Color	Insulation Height [z]	Insulation Height [z]	Insulation Color	Termination	Contact Material	Current Rating (Amps)	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Finish - Post	Material Flammability Rating	Shrouding	Style	Contact Shape	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post

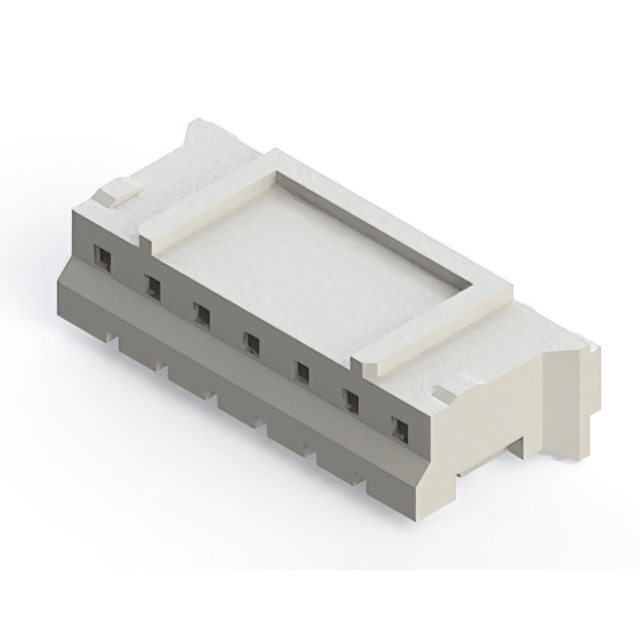

EDAC Inc. 140-507-210-011	Contacts Not Included	85 °C	-25 °C	1	Polarizing Key	Free Hanging (In-Line)	Nylon 6/6 Polyamide (PA66)	Crimp	Receptacle	Detent Lock	0.079 in	2 mm	Female Socket	7	Natural

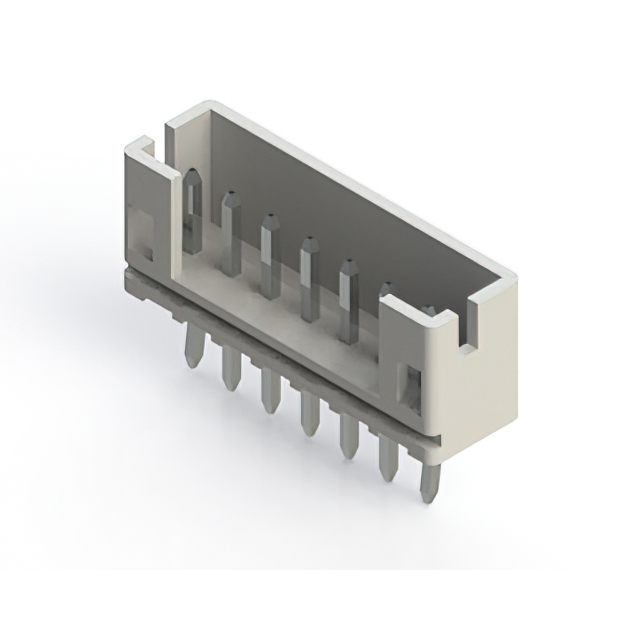

EDAC Inc. 140-507-415-001		105 ░C	-40 C	1		Through Hole	Nylon 6/6 Polyamide (PA66)		Header	Detent Lock			Male Pin	7		6.1 mm	0.24 in	Natural	Kinked Pin Solder	Brass	2 A	All	0.079 "	2 mm	100 VAC	Tin	UL94 V-0	Shrouded - 4 Wall	Board to Cable/Wire	Square
EDAC Inc. 140-507-417-011		105 ░C	-40 C	1	Solder Retention	Surface Mount	Liquid Crystal Polymer (LCP)		Header	Detent Lock			Male Pin	7				Natural	Solder	Brass	2 A	All	0.079 "	2 mm	100 VAC	Tin	UL94 V-0	Shrouded - 4 Wall	Board to Cable/Wire	Square	0.217 in	5.51 mm
EDAC Inc. 140-507-415-101		105 ░C	-40 C	1		Through Hole	Nylon 6/6 Polyamide (PA66)		Header	Detent Lock			Male Pin	7		6.1 mm	0.24 in	Natural	Solder	Brass	2 A	All	0.079 "	2 mm	100 VAC	Tin	UL94 V-0	Shrouded - 4 Wall	Board to Cable/Wire	Square

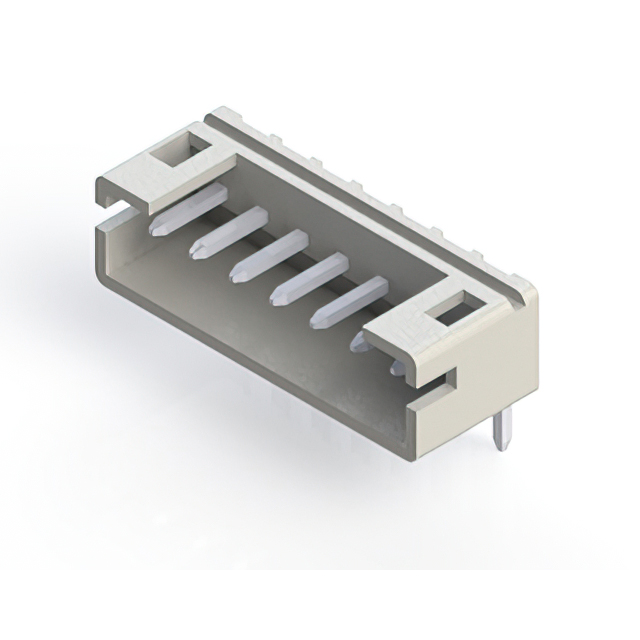

EDAC Inc. 140-507-415-100		105 ░C	-40 C	1		Right Angle Through Hole	Nylon 6/6 Polyamide (PA66)		Header	Detent Lock			Male Pin	7		4.7 mm	0.185 in	Natural	Solder	Brass	2 A	All	0.079 "	2 mm	100 VAC	Tin	UL94 V-0	Shrouded - 4 Wall	Board to Cable/Wire	Square			0.134 "	3.4 mm

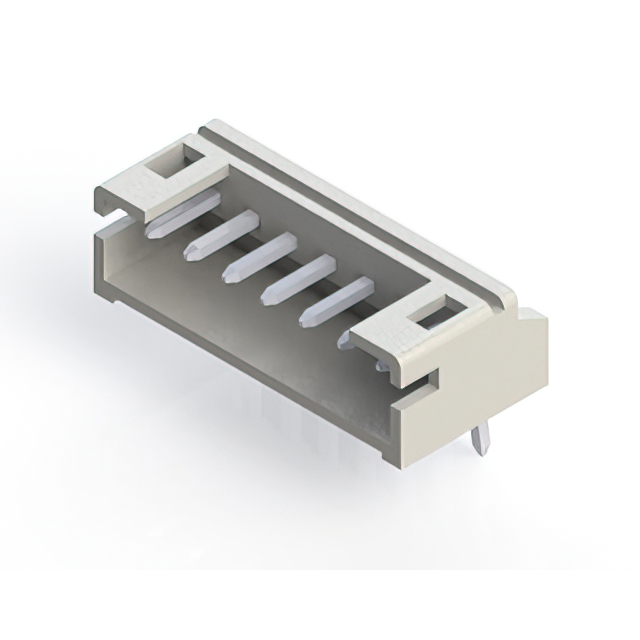

EDAC Inc. 140-507-415-000		105 ░C	-40 C	1		Right Angle Through Hole	Nylon 6/6 Polyamide (PA66)		Header	Detent Lock			Male Pin	7				Natural	Kinked Pin Solder	Brass	2 A	All	0.079 "	2 mm	100 VAC	Tin	UL94 V-0	Shrouded - 4 Wall	Board to Cable/Wire	Square	0.197 "	5 mm
