BC Series

Catalog

SENSOR CABLES / ACTUATOR CABLES CORDSET: SINGLE ENDED M12; 8-PIN RIGHT ANGLE FEMALE CONNECTOR; 10 M (32.8 FT) SHIELDED BLACK PVC JACKET; NICKEL-PLATED BRASS COUPLING NUT

Part	Shielding	Assembly Configuration	1st Connector Number of Positions Loaded	1st Connector Type	Cable Type	Ingress Protection	Cable Material	1st Connector Number of Positions [custom]	1st Connector Gender	1st Connector Mounting Type	Color	Usage	1st Connector Shell Size - Insert [custom]	2nd Connector Type	1st Connector Orientation	1st Connector Number of Positions	1st Connector Shell Size - Insert	2nd Connector Gender	2nd Connector Number of Positions Loaded	2nd Connector Number of Positions [custom]	2nd Connector Mounting Type	2nd Connector Shell Size - Insert	Length	Length
BANNER ENGINEERING BC-M12F8A-24-10-SF	Shielded	Standard	All	Plug Right Angle	Round	IP66 IP67 IP68	Polyvinyl Chloride (PVC)	8	Female Sockets	Free Hanging (In-Line)	Black	Industrial Environments	M12	Wire Leads	A
BANNER ENGINEERING BC-M12F5-22-10	Unshielded	Standard	All	Plug	Round	IP66 IP67 IP68	Polyvinyl Chloride (PVC)		Female Sockets	Free Hanging (In-Line)	Black	Industrial Environments	M12	Wire Leads	A	5
BANNER ENGINEERING BC-M8M4-24-20	Unshielded	Standard	All	Receptacle	Round	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)		Male Pins	Free Hanging (In-Line)	Black	Industrial Environments		Wire Leads		4	M8
BANNER ENGINEERING BC-M12F8-M12M8-24-5	Unshielded	Standard	All	Receptacle	Round	IP66 IP67 IP68	Polyvinyl Chloride (PVC)	8	Male Pins	Free Hanging (In-Line)	Black	Industrial Environments	M12	Plug	A			Female Sockets	All	8	Free Hanging (In-Line)	M12
BANNER ENGINEERING BC-M12F5A-22-5-SF	Shielded	Standard	All	Plug Right Angle	Round	IP66 IP67 IP68	Polyvinyl Chloride (PVC)		Female Sockets	Free Hanging (In-Line)	Black	Industrial Environments	M12	Wire Leads	A	5
BANNER ENGINEERING BC-M23M12-22-15	Unshielded	Standard	All	Receptacle	Round	IP67/IP68	Polyvinyl Chloride (PVC)		Male Pins	Free Hanging (In-Line)	Black	Industrial Environments		Wire Leads		12	M23						15 m	49.2 ft
BANNER ENGINEERING BC-M23M12-22-2	Unshielded	Standard	All	Receptacle	Round	IP67/IP68	Polyvinyl Chloride (PVC)		Male Pins	Free Hanging (In-Line)	Black	Industrial Environments		Wire Leads		12	M23						2 m	6.56 ft
BANNER ENGINEERING BC-M8M3-24-5	Unshielded	Standard	All	Receptacle	Round	IP67 - Dust Tight Waterproof	Polyvinyl Chloride (PVC)		Male Pins	Free Hanging (In-Line)	Black	Industrial Environments		Wire Leads	A	3	M8
BANNER ENGINEERING BC-M23M12-22-20	Unshielded	Standard	All	Receptacle	Round	IP67/IP68	Polyvinyl Chloride (PVC)		Male Pins	Free Hanging (In-Line)	Black	Industrial Environments		Wire Leads		12	M23

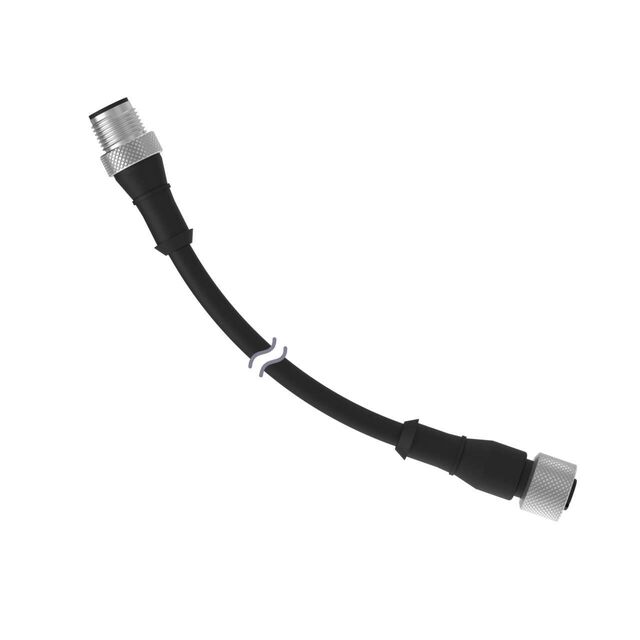

BANNER ENGINEERING BC-M12F8-M12M8-24-1	Unshielded	Standard	All	Receptacle	Round	IP66 IP67 IP68	Polyvinyl Chloride (PVC)	8	Male Pins	Free Hanging (In-Line)	Black	Industrial Environments	M12	Plug	A			Female Sockets	All	8	Free Hanging (In-Line)	M12	1 m	3.28 ft
