LPR Series
Manufacturer: Ohmite
Beta
⌘K

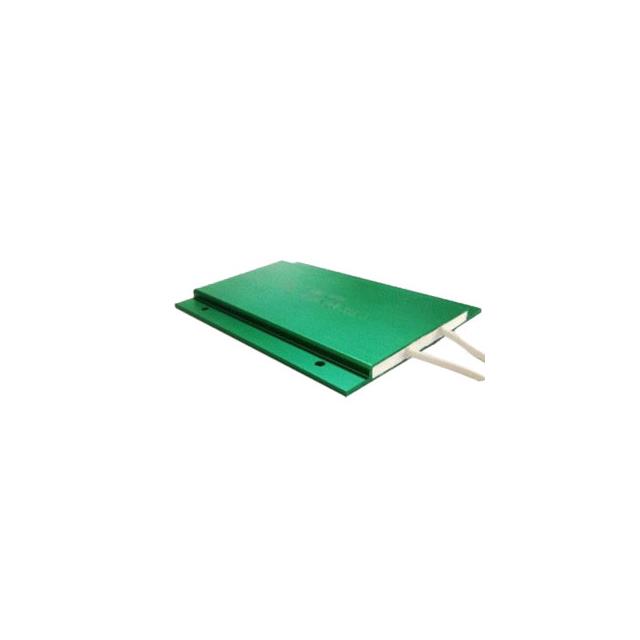

PLANAR RESISTORS - CHASSIS MOUNT 150 OHM 5% 100W LOW PROFILE
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Lead Style | Resistance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Package / Case | Coating, Housing Type | Power (Watts) | Tolerance | Operating Temperature | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | 2.953 " | 3.937 " | 100 mm | 75 mm | Wire Leads | 150 Ohms | 0.244 in | 6.2 mm | Rectangular Case | Aluminum | 100 W | 5 % | 250 °C | Screw Holes |
Ohmite | 2.953 " | 1.969 " | 50 mm | 75 mm | Wire Leads | 120 Ohms | 0.244 in | 6.2 mm | Rectangular Case | Aluminum | 50 W | 5 % | 250 °C | Screw Holes |
Ohmite | 2.953 " | 3.937 " | 100 mm | 75 mm | Wire Leads | 40 Ohms | 0.244 in | 6.2 mm | Rectangular Case | Aluminum | 100 W | 5 % | 250 °C | Screw Holes |
Ohmite | 2.953 " | 3.937 " | 100 mm | 75 mm | Wire Leads | 4 Ohms | 0.244 in | 6.2 mm | Rectangular Case | Aluminum | 100 W | 5 % | 250 °C | Screw Holes |
