TPS61281 Series

Catalog

2.3MHZ 3A SYNCHRONOUS BOOST CONVERTER WITH PASS-THROUGH MODE

Part	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Output (Min/Fixed)	Topology	Frequency - Switching	Voltage - Input (Min) [Min]	Output Configuration	Output Type	Number of Outputs	Function	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Supplier Device Package	Package / Case	Voltage - Output (Max) [Max]	Outputs and Type	Outputs and Type	Supplied Contents	Board Type	Regulator Topology	Voltage - Output	Contents	Utilized IC / Part	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]
Texas Instruments TPS61281DYFFR	4.85 V	Surface Mount	3.15 V	Boost	2.3 MHz	2.3 V	Positive	Programmable	1	Step-Up	85 C	-40 ¯C	3 A	16-DSBGA (1.67x1.67)	16-UFBGA DSBGA	4.4 V
Texas Instruments TPS61281YFFT	4.85 V	Surface Mount	2.85 V	Boost	2.3 MHz	2.3 V	Positive	Programmable	1	Step-Up	85 C	-40 ¯C	3 A	16-DSBGA (1.67x1.67)	16-UFBGA DSBGA	4.4 V

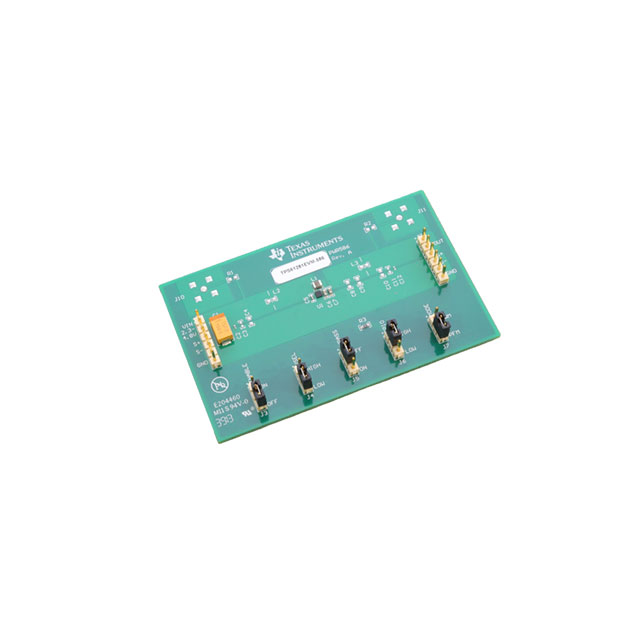

Texas Instruments TPS61281EVM-586					2.3 MHz								3 A				1	1 Non-Isolated Output Non-Isolated	Board(s)	Fully Populated	Boost	3.15 V 3.35 V	Board(s)	TPS61281	DC/DC Step Up	4.8 V	2.3 V
Texas Instruments TPS61281AYFFT	4.85 V	Surface Mount	2.85 V	Boost	2.3 MHz	2.3 V	Positive	Programmable	1	Step-Up	85 C	-40 ¯C	5 A	16-DSBGA (1.67x1.67)	16-UFBGA DSBGA	4.4 V
Texas Instruments TPS61281DYFFT	4.85 V	Surface Mount	3.15 V	Boost	2.3 MHz	2.3 V	Positive	Programmable	1	Step-Up	85 C	-40 ¯C	3 A	16-DSBGA (1.67x1.67)	16-UFBGA DSBGA	4.4 V
Texas Instruments TPS61281AYFFR	4.85 V	Surface Mount	2.85 V	Boost	2.3 MHz	2.3 V	Positive	Programmable	1	Step-Up	85 C	-40 ¯C	5 A	16-DSBGA (1.67x1.67)	16-UFBGA DSBGA	4.4 V
Texas Instruments TPS61281YFFR	4.85 V	Surface Mount	2.85 V	Boost	2.3 MHz	2.3 V	Positive	Programmable	1	Step-Up	85 C	-40 ¯C	3 A	16-DSBGA (1.67x1.67)	16-UFBGA DSBGA	4.4 V
