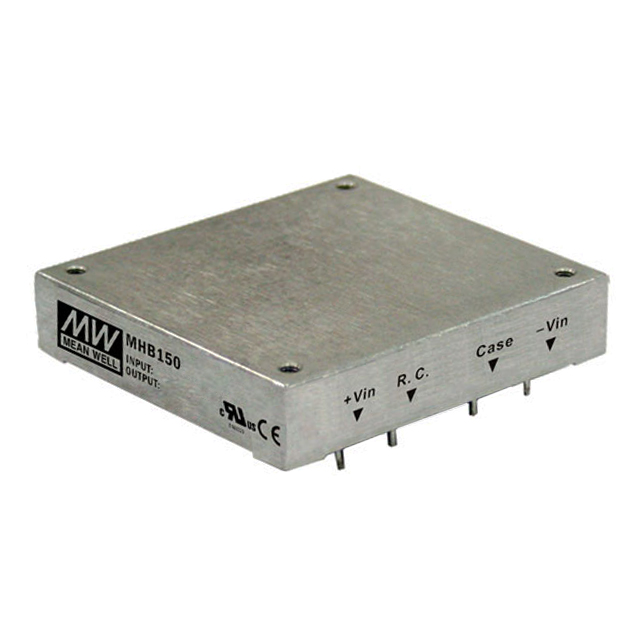

MHB150 Series

Catalog

DC DC CONVERTER 5V 150W

Part	Voltage - Output 1	Features	Voltage - Isolation	Package / Case	Control Features	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Number of Outputs	Applications	Supplier Device Package	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Type	Mounting Type	Efficiency
MEAN WELL USA Inc. MHB150-48S05	5 V	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Half Brick	Active High Enable	30 A	75 V	150 W	-40 C	100 °C	36 V	1	ITE (Commercial)	Half Brick	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Isolated Module	Through Hole	86 %
MEAN WELL USA Inc. MHB150-48S24	24 V	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Half Brick	Active High Enable	6.25 A	75 V	150 W	-40 C	100 °C	36 V	1	ITE (Commercial)	Half Brick	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Isolated Module	Through Hole	89 %
MEAN WELL USA Inc. MHB150-48S12	12 V	OCP OTP OVP Remote On/Off SCP UVLO	1.5 kV	Half Brick	Active High Enable	12.5 A	75 V	150 W	-40 C	100 °C	36 V	1	ITE (Commercial)	Half Brick	57.9 mm	2.28 in	2.4 in	0.5 in	61 mm	12.7 mm	Isolated Module	Through Hole	89 %
