WLB32C285 Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

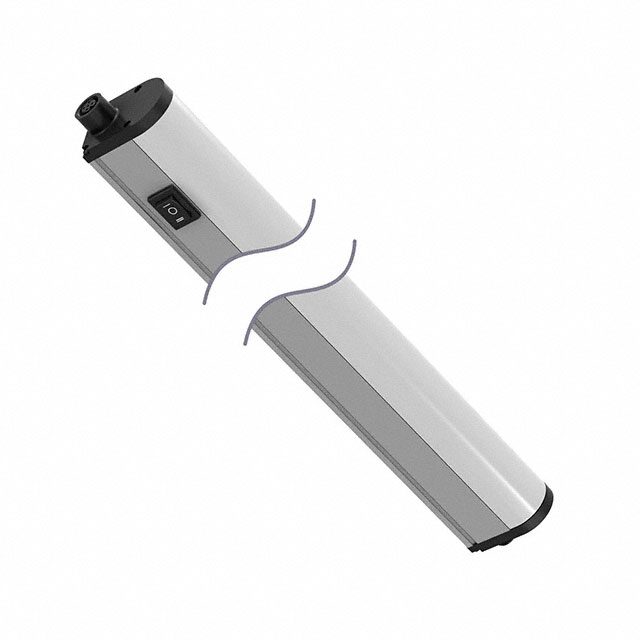

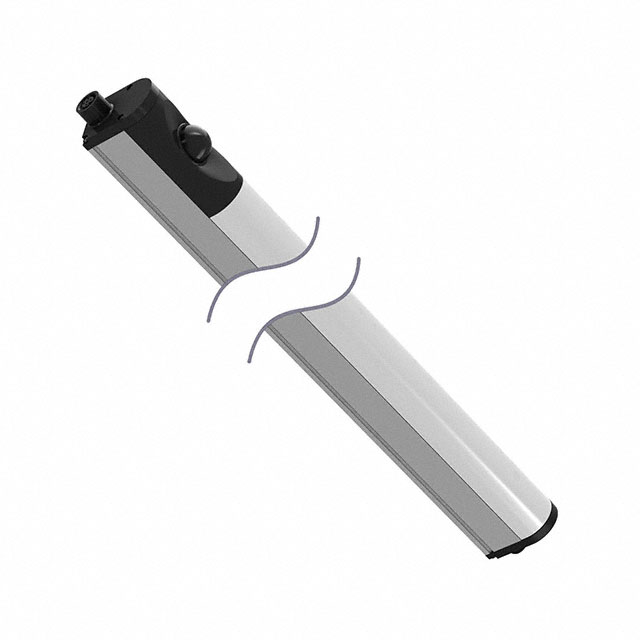

WORK LIGHT STRIP 285MM
| Part | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Profile (W x H) [x] | Profile (W x H) [x] | Profile (W x H) [y] | Profile (W x H) [y] | Voltage - Supply [Min] | Voltage - Supply [Max] | Luminous Flux | Rated Life | Approval Agency | Lens Type | Illumination Color | Ingress Protection | Termination Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | Aluminum (Al) | 70 °C | -40 C | 1.26 in | 32 mm | 1.81 in | 46 mm | 12 VDC | 30 VDC | 750 lm | 50000 Hours | CE cULus | Tubular Diffused | Cool White | IP50 - Dust Protected | Connector (M12) | |
 BANNER ENGINEERING | Aluminum (Al) | 70 °C | -40 C | 1.26 in | 32 mm | 1.81 in | 46 mm | 12 VDC | 30 VDC | 750 lm | 50000 Hours | CE cULus | Tubular Diffused | Cool White | IP50 - Dust Protected | Connector (M12) | Motion Detection |
 BANNER ENGINEERING | Aluminum (Al) | 70 °C | -40 C | 1.26 in | 32 mm | 1.81 in | 46 mm | 12 VDC | 30 VDC | 750 lm | 50000 Hours | CE cULus | Tubular Diffused | Cool White | IP50 - Dust Protected | Connector (M12) | High/Low/Off Switching |
 BANNER ENGINEERING | Aluminum (Al) | 70 °C | -40 C | 1.26 in | 32 mm | 1.81 in | 46 mm | 12 VDC | 30 VDC | 750 lm | 50000 Hours | CE cULus | Tubular Diffused | Cool White | IP50 - Dust Protected | Cable Leads | High/Low/Off Switching |
