160304 Series

Catalog

CONN QC RCPT 13.5-17AWG 0.250

Part	Tab Length	Tab Length	Insulation	Tab Thickness	Tab Thickness	Termination	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter	Tab Width	Tab Width	Gender	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material	Mounting Type	Length - Overall [x]	Length - Overall [x]	Terminal Type	Contact Finish

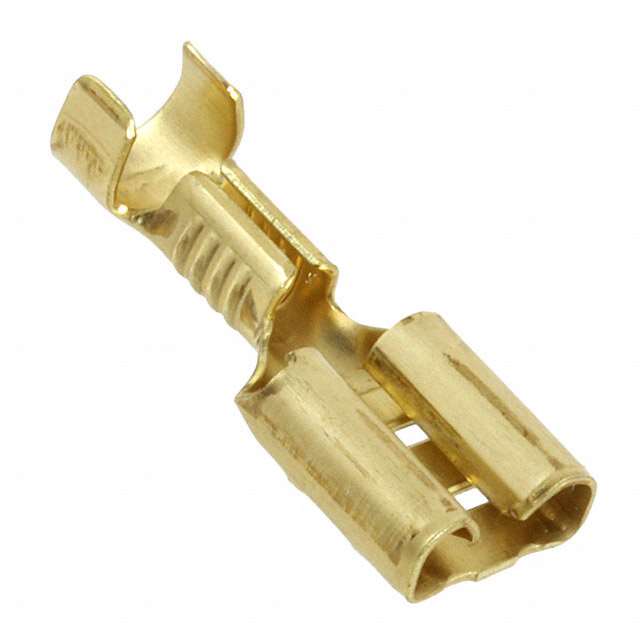

TE Connectivity Raychem Cable Protection 1-160304-0	0.303 in	7.7 mm	Non-Insulated	0.032 in	0.81 mm	Crimp	0.169 in	0.118 in	3 mm 4.29 mm	6.35 mm	0.25 in	Female	14 AWG	17 AWG	Brass	Free Hanging (In-Line)	0.795 in	20.19 mm	Standard

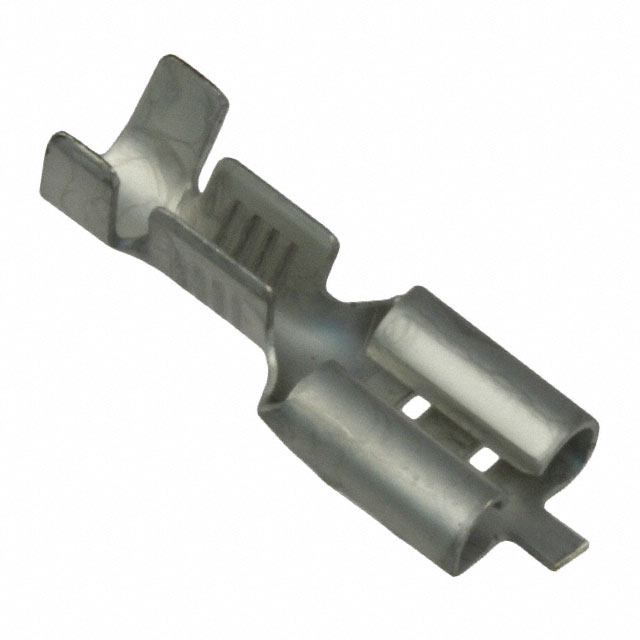

TE Connectivity Raychem Cable Protection 2-160304-4	0.303 in	7.7 mm	Non-Insulated	0.032 in	0.81 mm	Crimp	0.169 in	0.118 in	3 mm 4.29 mm	6.35 mm	0.25 in	Female	14 AWG	17 AWG	Steel	Free Hanging (In-Line)	0.795 in	20.19 mm	Standard	Nickel
