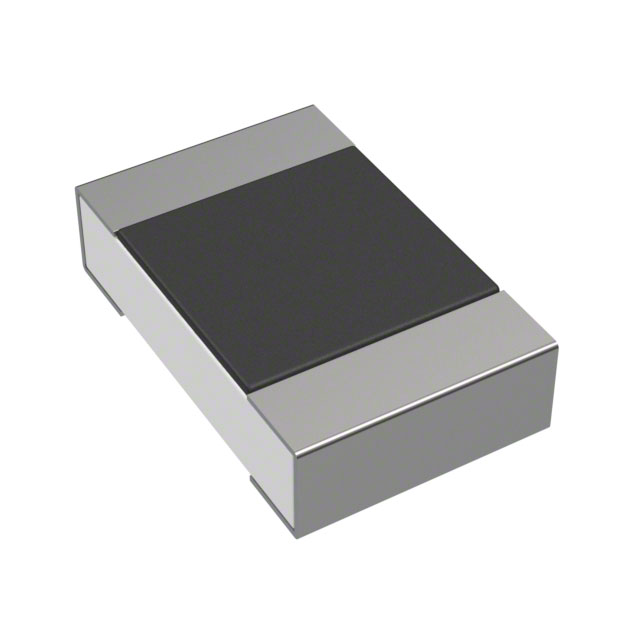

CHP-A Series

Catalog

THICK FILM RESISTORS - SMD RESHIGHPOWERA 1206 1K 1% 3/4W TC100

Part	Ratings	Resistance	Package / Case	Temperature Coefficient	Features	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Composition	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Terminations [custom]	Package / Case	Size / Dimension [y]	Power (Watts)	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Bourns Inc. CHP1206AFX-1001ELF	AEC-Q200	1000 Ohms	1206 (3216 Metric)	100 ppm/°C	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	155 C	-55 C	1 %	Thick Film	0.026 in	0.65 mm	1206	3/4W	0.75 W	0.063 "	1.6 mm	0.122 "	3.1 mm	2
Bourns Inc. CHP0603AFX-3302ELF	AEC-Q200	33000 Ohms	0603	100 ppm/°C	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	155 C	-55 C	1 %	Thick Film	0.022 in	0.55 mm			0.333 W	0.031 in		0.063 "	1.6 mm	2	1608 Metric	0.8 mm	0.3333333333333333 W
Bourns Inc. CHP2512AFX-1002ELF	AEC-Q200	10000 Ohms	2512 2512 (6432 Metric)	100 ppm/°C	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	155 C	-55 C	1 %	Thick Film					3 W	0.122 in		0.252 in	6.4 mm	2	6332 Metric	3.1 mm		2512	0.051 in	1.3 mm
Bourns Inc. CHP0805AFX-1002ELF	AEC-Q200	10000 Ohms	0805	100 ppm/°C	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	155 C	-55 C	1 %	Thick Film	0.024 in	0.6 mm	0805		0.5 W	0.049 "	1.25 mm	0.079 in	2 mm	2			0.5 W
Bourns Inc. CHP1206AFX-1002ELF	AEC-Q200	10000 Ohms	1206 (3216 Metric)	100 ppm/°C	Anti-Sulfur Automotive AEC-Q200 Moisture Resistant Pulse Withstanding	155 C	-55 C	1 %	Thick Film	0.026 in	0.65 mm	1206	3/4W	0.75 W	0.063 "	1.6 mm	0.122 "	3.1 mm	2
