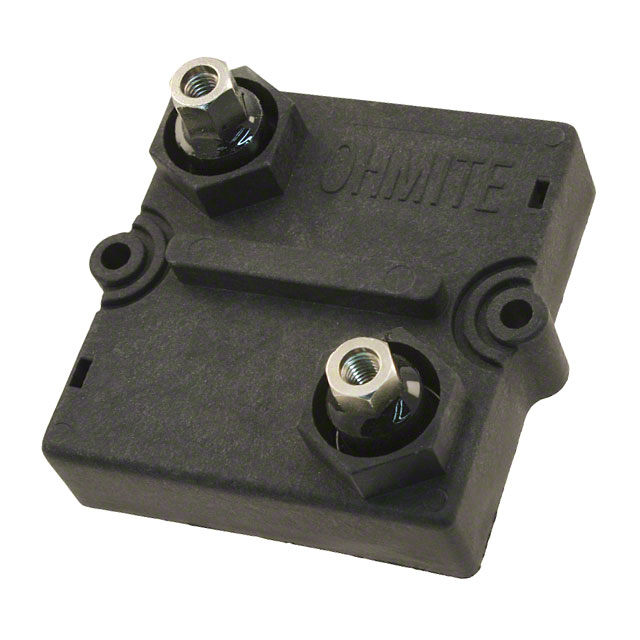

TAP800 Series
Manufacturer: Ohmite
Beta
⌘K
PLANAR RESISTORS - CHASSIS MOUNT 800W 680 OHM 10% HIGH POWER
| Part | Power (Watts) | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Resistance | Coating, Housing Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Feature | Lead Style | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Temperature Coefficient | Composition |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ohmite | 800 W | 10 % | -55 C | 150 °C | 680 Ohms | Epoxy Coated | 2.559 in | 60 mm | 65 mm | 2.362 in | Flanges | M5 Threaded | 32.5 mm | 1.28 in | 150 ppm/°C | Thick Film |
 Ohmite | 800 W | 10 % | -55 C | 150 °C | 1 Ohms | Epoxy Coated | 2.559 in | 60 mm | 65 mm | 2.362 in | Flanges | M5 Threaded | 32.5 mm | 1.28 in | 150 ppm/°C | Thick Film |
