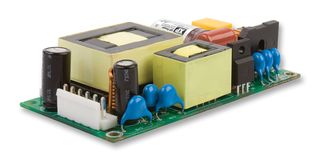

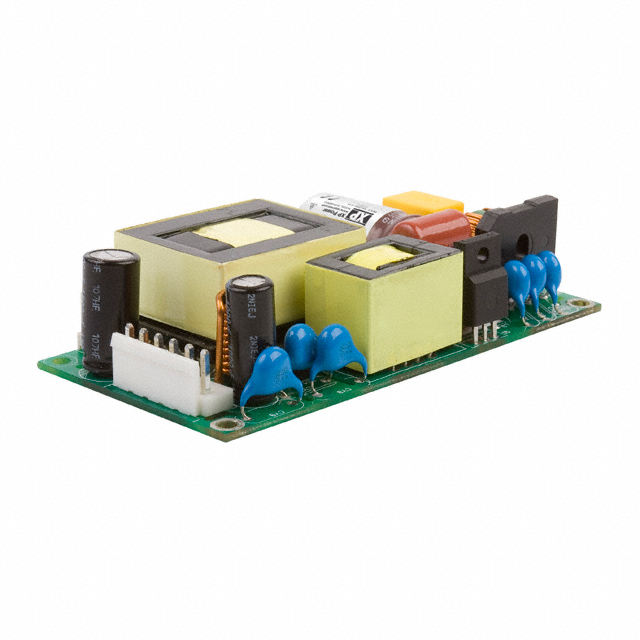

ECP180 Series
Manufacturer: XP Power
Beta
⌘K
SWITCHING POWER SUPPLIES PSU, 150W, 1U 2X4" OPEN FRAME
| Part | Minimum Load Required | Voltage - Output 1 | Applications | Standard Number | Type | Current - Output 1 | Power (Watts) | Features | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Voltage - Isolation | Efficiency | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | 15 V | ITE (Commercial) Medical | 62368-1 | Open Frame | 8 A | 120 W 180 W | Adjustable Output Universal Input | 70 °C | -20 °C | 1 | 4000 V | 92 % | Chassis Mount | 2 in | 4 " | 50.8 mm | 101.6 mm | 0.84 in | 21.6 mm | ||
XP Power | ITE (Commercial) Medical | 62368-1 | Open Frame | 5 A | 120 W 180 W | Adjustable Output Universal Input | 70 °C | -20 °C | 1 | 4000 V | 94 % | Chassis Mount | 2 in | 4 " | 50.8 mm | 101.6 mm | 0.84 in | 21.6 mm | 36 V | ||
 XP Power | 48 V | ITE (Commercial) Medical | 62368-1 | Open Frame | 3.75 A | 120 W 180 W | Adjustable Output Universal Input | 70 °C | -20 °C | 1 | 4000 V | 94 % | Chassis Mount | 2 in | 4 " | 50.8 mm | 101.6 mm | 0.84 in | 21.6 mm | ||
XP Power | 12 V | ITE (Commercial) Medical | 62368-1 | Open Frame | 10 A | 120 W 180 W | Adjustable Output Universal Input | 70 °C | -20 °C | 1 | 4000 V | 92 % | Chassis Mount | 2 in | 4 " | 50.8 mm | 101.6 mm | 0.84 in | 21.6 mm | ||
XP Power | 24 V | ITE (Commercial) Medical | 62368-1 | Open Frame | 5 A | 120 W 180 W | Adjustable Output Universal Input | 70 °C | -20 °C | 1 | 4000 V | 93 % | Chassis Mount | 2 in | 4 " | 50.8 mm | 101.6 mm | 0.84 in | 21.6 mm | ||
 XP Power | 28 V | ITE (Commercial) Medical | 62368-1 | Open Frame | 6.43 A | 120 W 180 W | Adjustable Output Universal Input | 70 °C | -20 °C | 1 | 4000 V | 93 % | Chassis Mount | 2 in | 4 " | 50.8 mm | 101.6 mm | 0.84 in | 21.6 mm |
