SMS24S Series
Manufacturer: Amphenol Aerospace Operations
Beta
⌘K

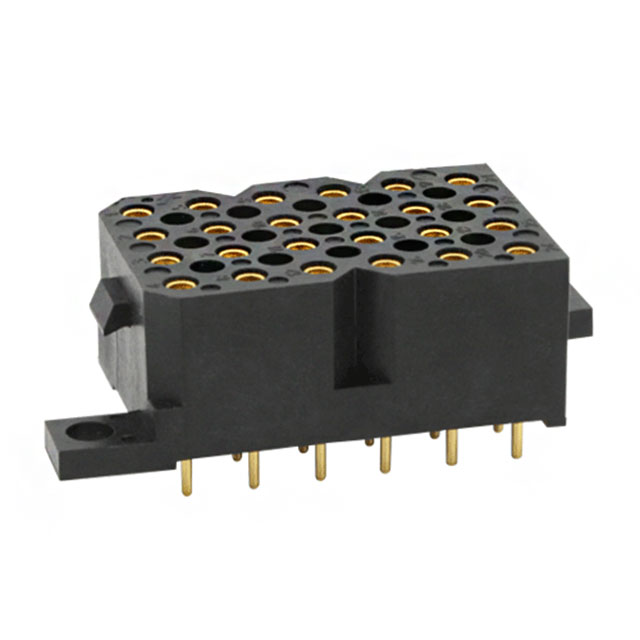

CONN RCPT 24POS 0.2 GOLD PCB
| Part | Contact Material | Contact Shape | Insulation Material | Mounting Type | Number of Rows | Number of Positions Loaded | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish - Post | Contact Type | Termination | Connector Type | Insulation Height | Style | Number of Positions | Row Spacing - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Material Flammability Rating | Ingress Protection | Insulation Color | Contact Length - Post | Pitch - Mating | Fastening Type | Current Rating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Aerospace Operations | Copper Alloy | Circular | Glass Filled Thermoplastic | Through Hole | 6 | All | -55 °C | 105 °C | Tin | Female Socket | Solder | Receptacle | 0.528 in | Board Board or Cable | 24 pos | 0.2 in | 16 µin | Gold | UL94 V-0 | IP40 | Black | 0.134 in | 0.2 in | Locking Ramp | 5 A | Mounting Flange |
