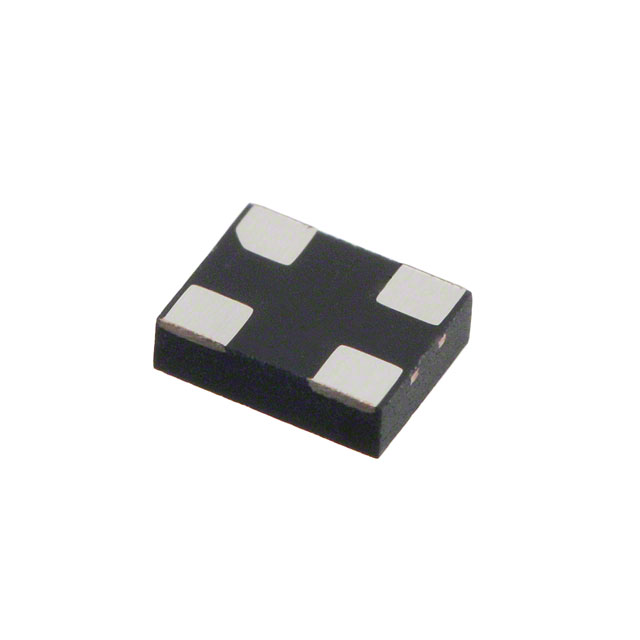

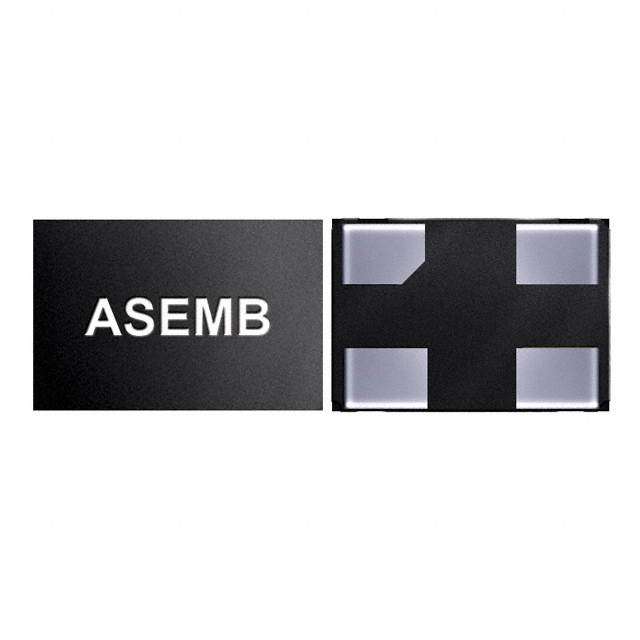

ASEMB Series

Catalog

STANDARD CLOCK OSCILLATORS 24.00 MHZ CMOS

Part	Package / Case	Base Resonator	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Type	Current - Supply (Max) [Max]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Function	Frequency	Output	Frequency Stability	Current - Supply (Disable) (Max) [Max]
Abracon LLC ASEMB-24.000MHZ-LC-T	4-SMD No Lead	MEMS	2.5 mm	0.098 in	3.2 mm	0.126 "	3.2	2.5	4-SMD	XO (Standard)	16 mA	Surface Mount	3.3 V	1.8 V	85 °C	-40 C	0.035 in	0.9 mm	Standby (Power Down)	24 MHz	CMOS	50 ppm
Abracon LLC ASEMB-44.000MHZ-LY-T	4-SMD No Lead	MEMS	2.5 mm	0.098 in	3.2 mm	0.126 "	3.2	2.5	4-SMD	XO (Standard)	16 mA	Surface Mount	3.3 V	1.8 V	85 °C	-40 C	0.035 in	0.9 mm	Standby (Power Down)	44 MHz	CMOS	10 ppm
Abracon LLC ASEMB-29.4912MHZ-XY-T	4-SMD No Lead	MEMS	2.5 mm	0.098 in	3.2 mm	0.126 "	3.2	2.5	4-SMD	XO (Standard)	16 mA	Surface Mount	3.3 V	1.8 V	105 ░C	-40 C	0.035 in	0.9 mm	Standby (Power Down)	29.4912 MHz	CMOS	10 ppm	15 çA
Abracon LLC ASEMB-14.31818MHZ-XY-T	4-SMD No Lead	MEMS	2.5 mm	0.098 in	3.2 mm	0.126 "	3.2	2.5	4-SMD	XO (Standard)	16 mA	Surface Mount	3.3 V	1.8 V	105 ░C	-40 C	0.035 in	0.9 mm	Standby (Power Down)	14.31818 MHz	CMOS	10 ppm	15 çA
Abracon LLC ASEMB-133.333MHZ-XY-T	4-SMD No Lead	MEMS	2.5 mm	0.098 in	3.2 mm	0.126 "	3.2	2.5	4-SMD	XO (Standard)	16 mA	Surface Mount	3.3 V	1.8 V	105 ░C	-40 C	0.035 in	0.9 mm	Standby (Power Down)	133.333 MHz	CMOS	10 ppm
Abracon LLC ASEMB-12.000MHZ-LY-T	4-SMD No Lead	MEMS	2.5 mm	0.098 in	3.2 mm	0.126 "	3.2	2.5	4-SMD	XO (Standard)	16 mA	Surface Mount	3.3 V	1.8 V	85 °C	-40 C	0.035 in	0.9 mm	Standby (Power Down)	12 MHz	CMOS	10 ppm	15 çA
Abracon LLC ASEMB-12.288MHZ-LY-T	4-SMD No Lead	MEMS	2.5 mm	0.098 in	3.2 mm	0.126 "	3.2	2.5	4-SMD	XO (Standard)	15 mA	Surface Mount	3.3 V	1.8 V	85 °C	-40 C	0.035 in	0.9 mm	Standby (Power Down)	12.288 MHz	CMOS	10 ppm	15 çA
Abracon LLC ASEMB-64.000MHZ-LY-T	4-SMD No Lead	MEMS	2.5 mm	0.098 in	3.2 mm	0.126 "	3.2	2.5	4-SMD	XO (Standard)	15 mA	Surface Mount	3.3 V	1.8 V	85 °C	-40 C	0.035 in	0.9 mm	Standby (Power Down)	64 MHz	CMOS	10 ppm
Abracon LLC ASEMB-29.4912MHZ-LY-T	4-SMD No Lead	MEMS	2.5 mm	0.098 in	3.2 mm	0.126 "	3.2	2.5	4-SMD	XO (Standard)	16 mA	Surface Mount	3.3 V	1.8 V	85 °C	-40 C	0.035 in	0.9 mm	Standby (Power Down)	29.4912 MHz	CMOS	10 ppm	15 çA
Abracon LLC ASEMB-26.000MHZ-L-T	4-SMD No Lead	MEMS	2.5 mm	0.098 in	3.2 mm	0.126 "	3.2	2.5	4-SMD	XO (Standard)	15 mA	Surface Mount	3.3 V	1.8 V	85 °C	-40 C	0.035 in	0.9 mm	Standby (Power Down)	26 MHz	LVCMOS	50 ppm	15 çA
