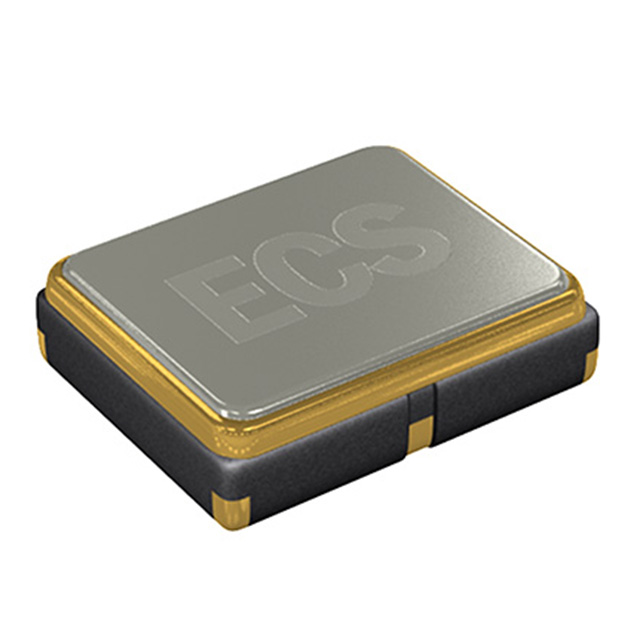

ECS-2520Q Series

Manufacturer: ECS Inc.

Catalog

STANDARD CLOCK OSCILLATORS 48MHZ 3.0V 30PPM -40C TO +105C

Part	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Type	Mounting Type	Voltage - Supply	Ratings	Base Resonator [custom]	Function	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Output	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency	Package / Case	Frequency Stability	Current - Supply (Max) [Max]
ECS Inc. ECS-2520Q-30-480-DP-TR	2	2.5	4-SMD	XO (Standard)	Surface Mount	3 V	AEC-Q200	Crystal	Enable/Disable	-40 C	105 ░C	2.5 mm	0.079 in	0.098 in	2 mm	HCMOS	0.035 in	0.9 mm	48 MHz	4-SMD No Lead	30 ppm
ECS Inc. ECS-2520Q-33-480-DP-TR	2	2.5	4-SMD	XO (Standard)	Surface Mount	3.3 V	AEC-Q200	Crystal	Enable/Disable	-40 C	105 ░C	2.5 mm	0.079 in	0.098 in	2 mm	HCMOS	0.035 in	0.9 mm	48 MHz	4-SMD No Lead	30 ppm	8 mA
ECS Inc. ECS-2520Q-18-260-BS-TR	2	2.5	4-SMD	XO (Standard)	Surface Mount	1.8 V	AEC-Q200	Crystal	Enable/Disable	-40 C	125 °C	2.5 mm	0.079 in	0.098 in	2 mm	HCMOS	0.035 in	0.9 mm	26 MHz	4-SMD No Lead	50 ppm	3 mA
