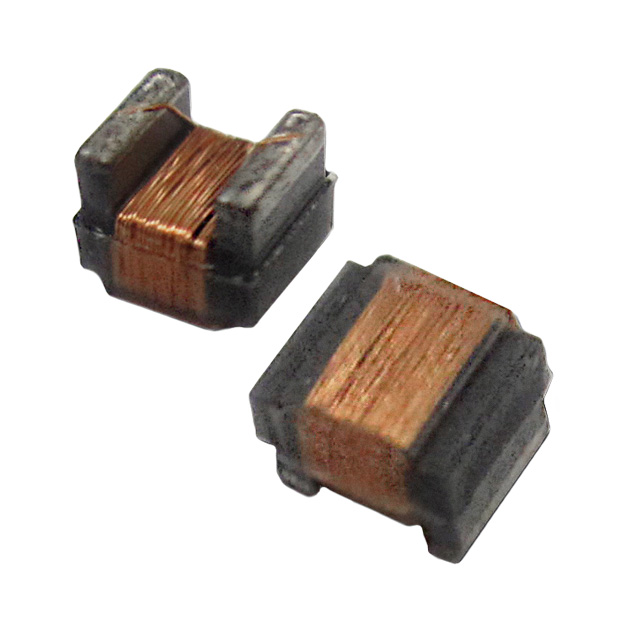

AISC-0805F Series
Manufacturer: Abracon LLC
Beta
⌘K
RF INDUCTORS - SMD IND 15.00 UH 0.080 A 6500.00 MOHM
| Part | Inductance | Current Rating (Amps) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Q @ Freq | Shielding | Material - Core | Package / Case | Tolerance | Height - Seated (Max) | Height - Seated (Max) [Max] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) | Type | Supplier Device Package | Inductance Frequency - Test | Frequency - Self Resonant | Q @ Freq [custom] | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 15 µH | 80 mA | 1.73 mm | 0.068 " | 0.09 in | 2.29 mm | 2.5 MHz 10 | Unshielded | Ferrite | 0805 | 2 % | 1.55 mm | 0.061 in | Surface Mount | 125 °C | -40 C | 6.5 Ohm | Drum Core Wirewound | 0805 | 2.5 MHz | 23 MHz | ||
Abracon LLC | 68 µH | 40 mA | 1.73 mm | 0.068 " | 0.09 in | 2.29 mm | 8 | Unshielded | Ferrite | 0805 | 5 % | 1.55 mm | 0.061 in | Surface Mount | 125 °C | -40 C | Drum Core Wirewound | 0805 | 2.5 MHz | 11 MHz | 2.5 MHz | 17.5 Ohm | |
 Abracon LLC | 22 µH | 68 mA | 1.73 mm | 0.068 " | 0.09 in | 2.29 mm | 2.5 MHz 10 | Unshielded | Ferrite | 0805 | 5 % | 1.55 mm | 0.061 in | Surface Mount | 125 °C | -40 C | Drum Core Wirewound | 0805 | 2.5 MHz | 20 MHz | 8 Ohm |
