917896 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

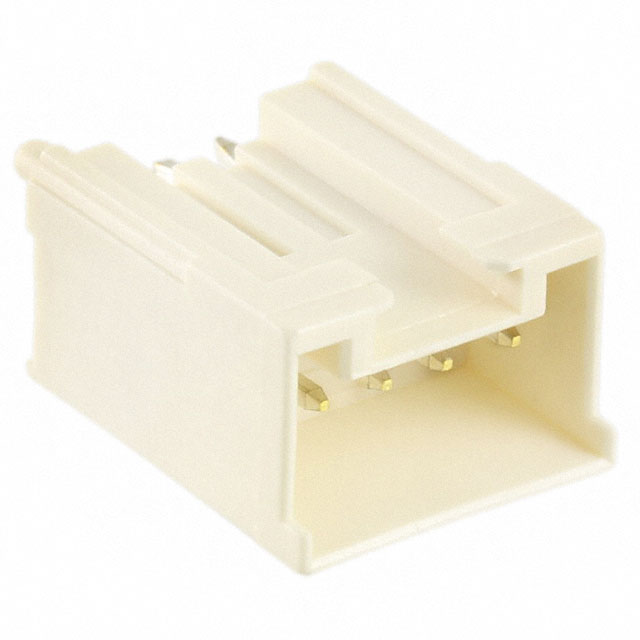

2.5 S.D L STD V 4P HDR ON/TAPE
| Part | Mated Stacking Heights | Applications | Shrouding | Connector Type | Overall Contact Length | Overall Contact Length | Number of Rows | Style | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Insulation Color | Insulation Material | Contact Length - Mating | Contact Length - Mating | Contact Shape | Insulation Height | Insulation Height | Features | Material Flammability Rating | Termination | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Number of Positions | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Mounting Type | Contact Type | Current Rating (Amps) | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 13.7 mm | General Purpose | Shrouded - 4 Wall | Header | 0.41 in | 10.41 mm | 1 | Board to Cable/Wire | Tin | 2.5 mm | 0.098 in | Natural | Glass Filled Nylon 6/6 Polyamide (PA66) | 4.7 mm | 0.185 in | Square | 9.8 mm | 0.386 in | Board Guide | UL94 V-0 | Kinked Pin Solder | All | 0.126 " | 3.2 mm | 4 | 50 V | -30 ░C | 105 ░C | Copper Alloy | Through Hole | Male Pin | 3 A | Latch Holder |
