2974 Series
Manufacturer: COTO TECHNOLOGY
Beta
⌘K
RELAY REED SPST 500MA 5V
| Part | Coil Resistance | Contact Form | Must Operate Voltage | Mounting Type | Release Time | Coil Voltage | Termination Style | Contact Rating (Current) | Operating Temperature [Max] | Operating Temperature [Min] | Operate Time | Switching Voltage [Max] | Must Release Voltage | Coil Current | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

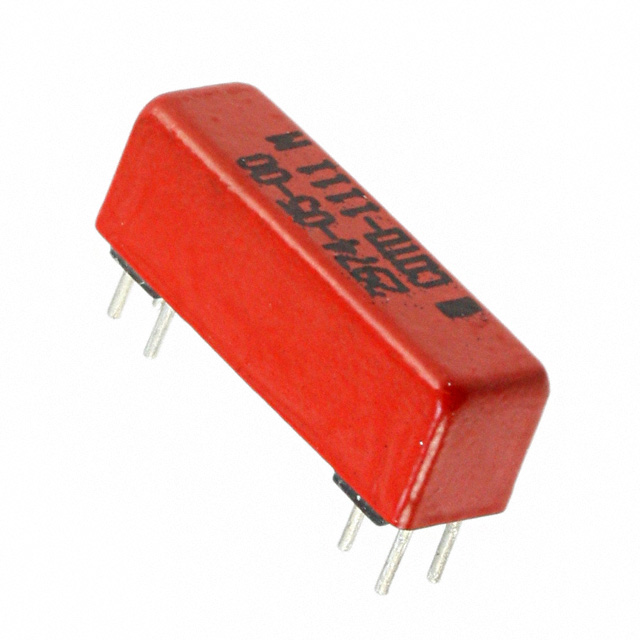

 COTO TECHNOLOGY | 230 Ohms | SPST-NO (1 Form A) | 2.5 VDC | Through Hole | 0.1 ms | 5 VDC | PC Pin | 0.5 A | 125 °C | -40 C | 500 µs | 200 VDC 200 VAC | 0.4 VDC | 21.7 mA | Non Latching |

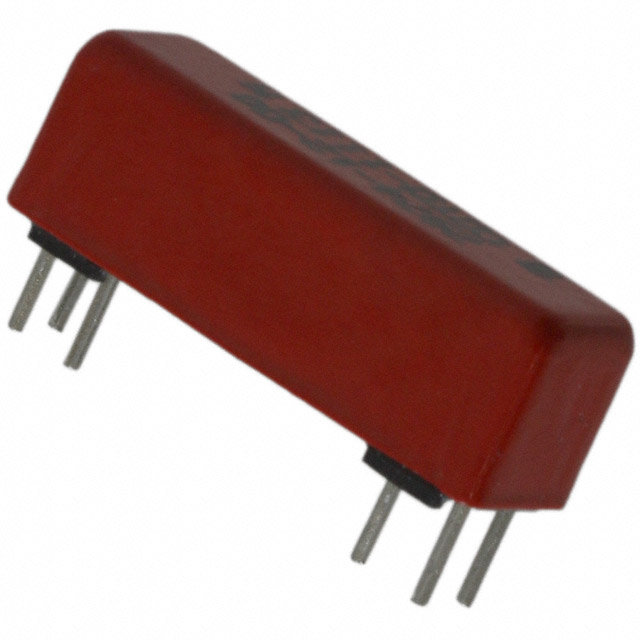

 COTO TECHNOLOGY | 1.5 kOhms | SPST-NO (1 Form A) | 6.7 VDC | Through Hole | 0.1 ms | 12 VDC | PC Pin | 0.5 A | 125 °C | -40 C | 500 µs | 200 VDC 200 VAC | 1 VDC | Non Latching |
