SMTC Series

Manufacturer: Metcal

Catalog

SOLDERING IRONS CARTRIDGE HOOF 3.3MM(0.13IN) 60DEG

Part	Temperature Range	Temperature Range	Tip Shape	Diameter [diameter]	Diameter [diameter]	For Use With/Related Products	Tip Type	Length [x]	Length [x]	Length	Length	Width [x]	Width [x]	Height	Height	Width	Width	Tip Chip Size	Width [y]	Width [y]
Metcal SMTC-0147-PK	675 °F	357 °C	Hoof	0.13 in	3.3 mm	MX-500 MX-5000 MX-5200 MX-H1-AV MX-RM3E MX-RM6E	Rework	17.78 mm	0.7 in
Metcal SMTC-0185	626 °F	330 °C	Hoof			MX-500 MX-5200	Rework			11.6 mm	0.457 in	1.9 mm	0.075 in
Metcal SMTC-0BL050	675 °F	357 °C	Blade			MX-500 MX-5000 MX-5200 MX-H1-AV MX-RM3E MX-RM6E	Rework			9.1 mm	0.358 in	5 mm	0.197 in	0.02 in	0.5 mm
Metcal SMTC-10029	734 °F	390 °C	Blade				Soldering									12.7 mm	0.5 in
Metcal SMTC-1167			Hoof				Rework			16.5 mm	0.65 in	1.52 mm	0.06 in					Chip
Metcal SMTC-0167-PK	675 °F	357 °C	Hoof	0.06 in	1.52 mm	MX-500 MX-5000 MX-5200 MX-H1-AV MX-RM3E MX-RM6E	Rework			16.5 mm	0.65 in

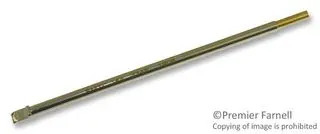

Metcal SMTC-164	734 °F	390 °C	Blade			MX-500 MX-5000 MX-5200 MX-H1-AV MX-RM3E MX-RM6E	Rework
Metcal SMTC-1171	775 °F	413 °C	Conical			MX-500 MX-5000 MX-5200 MX-H1-AV MX-RM3E MX-RM6E	Rework			16.5 mm	0.65 in								0.76 mm	0.03 in

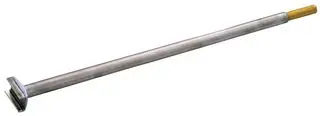

Metcal SMTC-006	675 °F	357 °C	Tunnel			MX-500 MX-5000 MX-5200 MX-H1-AV MX-RM3E MX-RM6E	Rework
Metcal SMTC-101	775 °F	413 °C	Slot			MX-500 MX-5000 MX-5200 MX-H1-AV MX-H7-SF MX-RM3E MX-RM6E	Rework
