RPMD60 (G) Series

Catalog

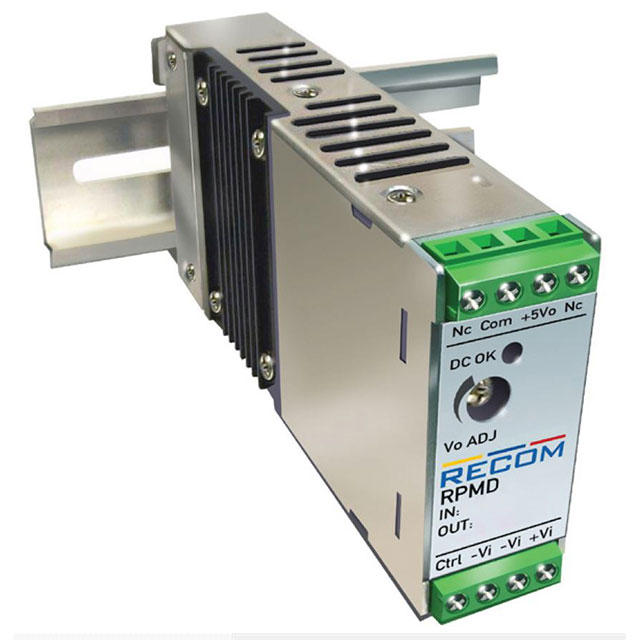

ISOLATED DC/DC CONVERTERS - DIN RAIL MOUNT POWER MODULE SERIES RP60 (G )

Part	Applications	Number of Outputs	Approval Agency	Power (Watts)	Input Type	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Standard Number	Voltage - Output 1	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Current - Output (Max)
Recom Power RPMD60-483.3SG	ITE (Commercial)	1	CE LVD	60 W	DC	18.2 A	2.26 in	57.6 mm	24.5 mm	0.96 in	4.58 in	116.3 mm	60950-1	3.3 V	36 V	75 V
Recom Power RPMD60-2415SG/N	ITE (Commercial)	1	CE LVD	60 W	DC	4 A	2.26 in	57.6 mm	24.5 mm	0.96 in	4.58 in	116.3 mm	60950-1	15 V	18 V	36 V
Recom Power RPMD60-2405SG	ITE (Commercial)	1	CE LVD	60 W	DC	1 A	2.26 in	57.6 mm	24.5 mm	0.96 in	4.58 in	116.3 mm	60950-1	5 V	18 V	36 V
Recom Power RPMD60-483.3SG/N	ITE (Commercial)	1	CE LVD	60 W	DC	18.2 A	2.26 in	57.6 mm	24.5 mm	0.96 in	4.58 in	116.3 mm	60950-1	3.3 V	36 V	75 V
Recom Power RPMD60-4815SG	ITE (Commercial)	1	CE LVD	60 W	DC	4 A	2.26 in	57.6 mm	24.5 mm	0.96 in	4.58 in	116.3 mm	60950-1	15 V	36 V	75 V
Recom Power RPMD60-2415SG	ITE (Commercial)	1	CE LVD	60 W	DC	4 A	2.26 in	57.6 mm	24.5 mm	0.96 in	4.58 in	116.3 mm	60950-1	15 V	18 V	36 V
Recom Power RPMD60-4812SG/N	ITE (Commercial)	1	CE LVD	60 W	DC		2.26 in	57.6 mm	24.5 mm	0.96 in	4.58 in	116.3 mm	60950-1	12 V	36 V	75 V	5 A
Recom Power RPMD60-2412SG/N	ITE (Commercial)	1	CE LVD	60 W	DC		2.26 in	57.6 mm	24.5 mm	0.96 in	4.58 in	116.3 mm	60950-1	12 V	18 V	36 V	5 A
Recom Power RPMD60-4812SG	ITE (Commercial)	1	CE LVD	60 W	DC		2.26 in	57.6 mm	24.5 mm	0.96 in	4.58 in	116.3 mm	60950-1	12 V	36 V	75 V	5 A
Recom Power RPMD60-2405SG/N	ITE (Commercial)	1	CE LVD	60 W	DC	1 A	2.26 in	57.6 mm	24.5 mm	0.96 in	4.58 in	116.3 mm	60950-1	5 V	18 V	36 V
