XM2E Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

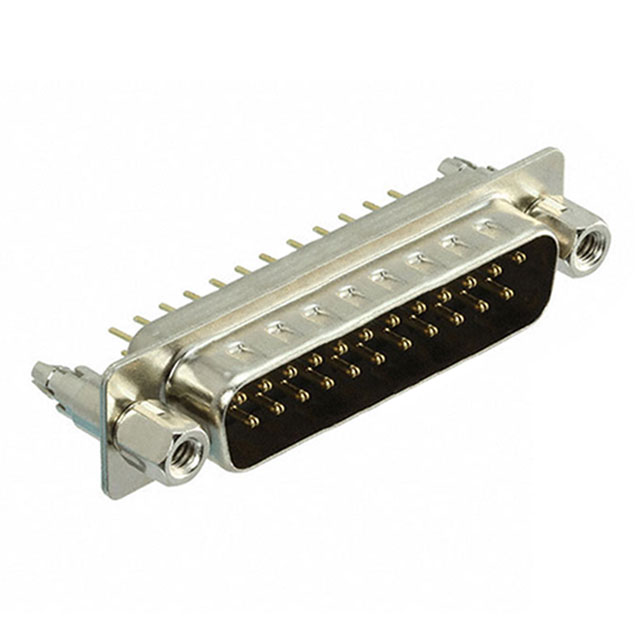

CONN D-SUB PLUG 25POS VERT SLDR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Color | Voltage Rating | Contact Material | Connector Style | Contact Finish Thickness | Mounting Type | Shell Material, Finish | Contact Finish | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Flange Feature | Connector Type | Termination | Features | Number of Rows [custom] | Contact Type | Current Rating (Amps) | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 105 ░C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 300 VDC | Brass | D-Sub | Flash | Through Hole | Nickel Plated Steel | Gold | UL94 V-0 | B DB | 3 | 4-40 Mating Side Female Screwlock | Plug Male Pins | Solder | Board Lock Grounding Indents Shielded | 2 | Signal | 3 A | 25 | ||||

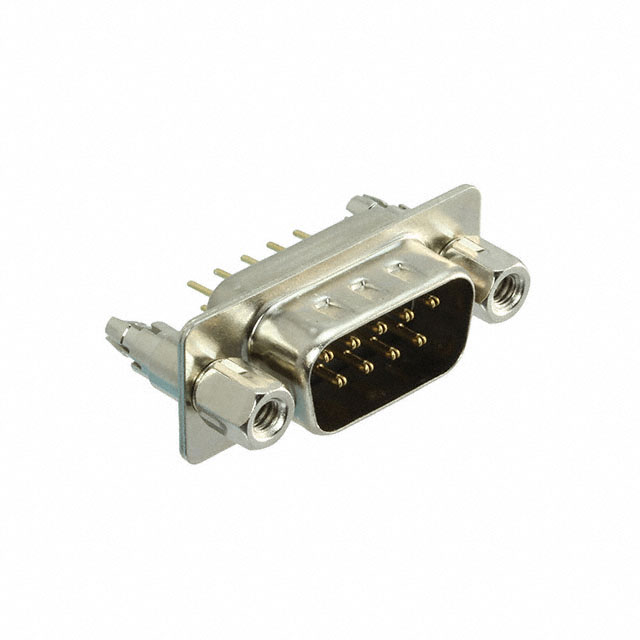

 Omron Electronics Inc-EMC Div | 105 ░C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 300 VDC | Brass | D-Sub | Flash | Through Hole | Nickel Plated Steel | Gold | UL94 V-0 | 4-40 Mating Side Female Screwlock | Plug Male Pins | Solder | Board Lock Grounding Indents Shielded | 2 | Signal | 3 A | 9 | 1 | DE E | ||||
Omron Electronics Inc-EMC Div | 105 ░C | -25 °C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 300 VDC | Brass | D-Sub | Through Hole | Nickel Plated Steel | Gold | UL94 V-0 | Housing/Shell (Unthreaded) | Plug Male Pins | Solder | Shielded | 2 | Signal | 3 A | 9 | 1 | DE E | 16 µin | 0.41 µm |
