ELG158M Series
Manufacturer: KEMET
Beta
⌘K

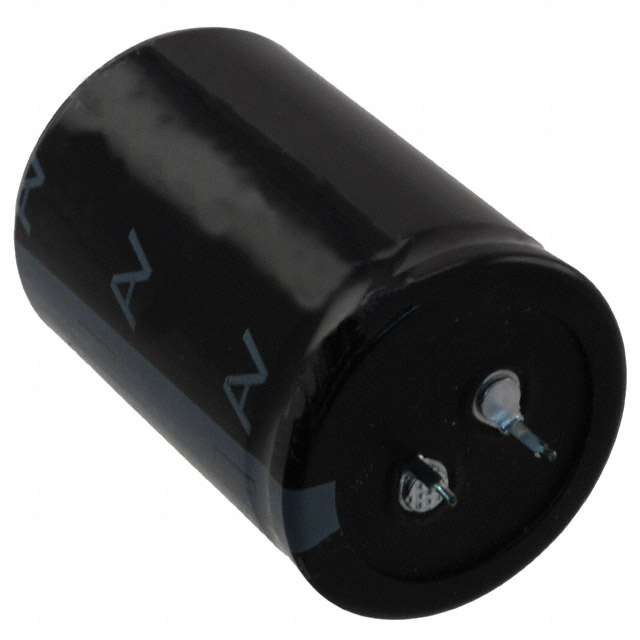

CAP ALUMINUM LYTIC 1500UF 250V 20% (35 X 50MM) SNAP-IN 10MM 0.133 OHM 3.63A 2000H 105°C BAG
| Part | Tolerance | Package / Case | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Size / Dimension [diameter] | Size / Dimension [diameter] | Ripple Current @ High Frequency | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lead Spacing | Lead Spacing | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Applications | Capacitance | Polarization | Ripple Current @ Low Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 20 % | Radial Can - Snap-In | 250 V | 66 mOhm | 2000 Hrs | 1.378 " | 35 mm | 5.445 A | 2.047 in | 52 mm | 0.394 in | 10 mm | 105 ░C | -25 °C | Through Hole | General Purpose | 1.5 mF | Polar | 3.63 A |
