160303 Series

Catalog

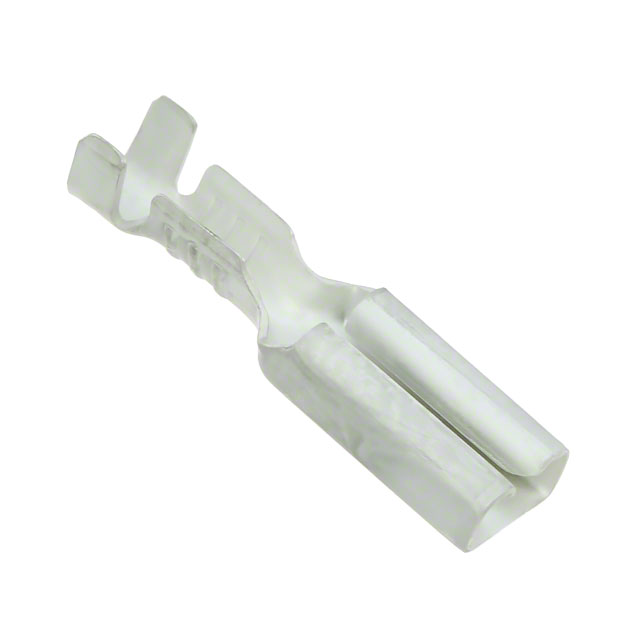

CONN QC RCPT 20-22AWG 0.110

Part	Tab Width	Tab Width	Termination	Tab Thickness	Tab Thickness	Contact Material	Gender	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Mounting Type	Length - Overall [x]	Length - Overall [x]	Insulation	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Min]	Tab Length	Tab Length	Contact Finish
TE Connectivity Raychem Cable Protection 5-160303-1	2.79 mm	0.11 "	Crimp	0.032 in	0.81 mm	Brass	Female	20 AWG	22 AWG	Standard	Free Hanging (In-Line)	0.551 "	14 mm	Non-Insulated	0.08 "	2.03 mm	0.05 "	1.27 mm	6.35 mm	0.25 in
TE Connectivity Raychem Cable Protection 5-160303-2	2.79 mm	0.11 "	Crimp	0.032 in	0.81 mm	Brass	Female	20 AWG	22 AWG	Standard	Free Hanging (In-Line)	0.551 "	14 mm	Non-Insulated	0.08 "	2.03 mm	0.05 "	1.27 mm	6.35 mm	0.25 in	Tin
