R19144 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
BNC MALE - UHF FEMALE STRAIGHT A
| Part | Center Contact Material | Body Material | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Plating | Convert From (Adapter End) | Fastening Type | Fastening Type | Impedance | Conversion Type | Convert To (Adapter End) | Adapter Type | Mounting Type | Style | Frequency - Max [Max] | Mating Cycles | Adapter Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

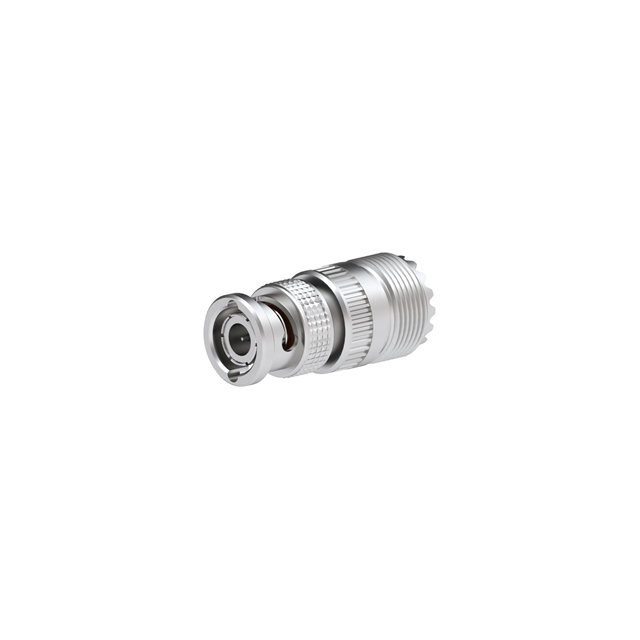

 Radiall USA, Inc. | Brass | Brass | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Nickel | Silver | BNC Plug Male Pin | Threaded | Bayonet Lock | 50 Ohms | Between Series | UHF Jack Female Socket | Plug to Jack | Free Hanging (In-Line) | Straight | 500 MHz | ||

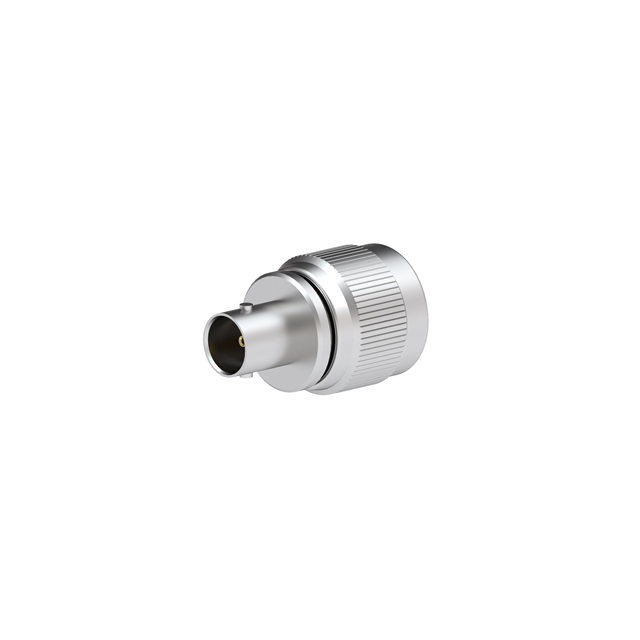

 Radiall USA, Inc. | Beryllium Copper | Brass | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Nickel | Gold | BNC Jack Female Socket | Threaded | Bayonet Lock | 50 Ohms | Between Series | UHF Plug Male Pin | Plug to Jack | Free Hanging (In-Line) | Straight | 500 MHz | ||

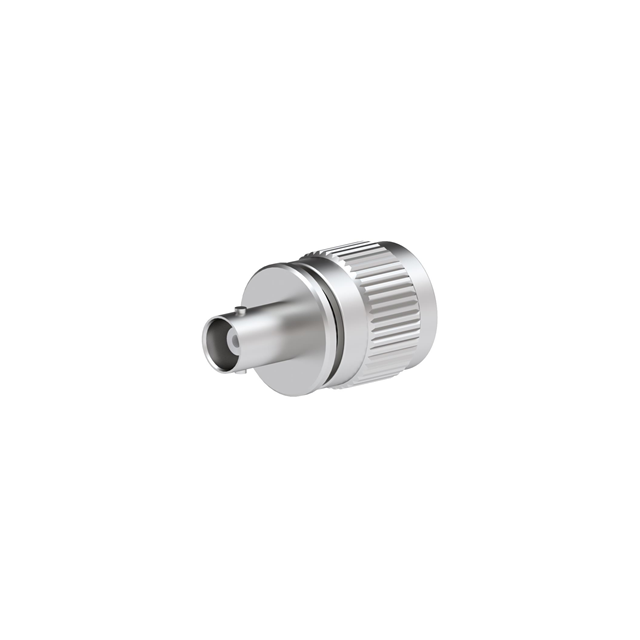

 Radiall USA, Inc. | Beryllium Copper | Brass | Polytetrafluoroethylene (PTFE) | -55 C | 125 °C | Nickel | Silver | BNC Jack Female Socket | Threaded | Bayonet Lock | 50 Ohms | Between Series | HN Plug Male Pin | Plug to Jack | Free Hanging (In-Line) | Straight | 4 GHz | 500 | BNC to HN |
