1045423 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

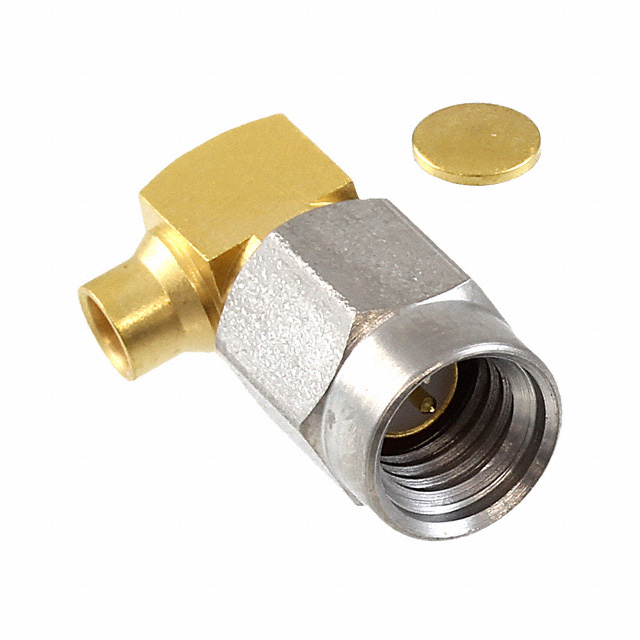

CONN SSMA PLUG R/A 50 OHM SOLDER
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Includes | Dielectric Material | Center Contact Plating | Voltage Rating | Frequency - Max [Max] | Connector Style | Number of Ports | Contact Termination | Mounting Type | Connector Type | Center Contact Material | Impedance | Fastening Type | Cable Group | Shield Termination | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold Passivated | -55 C | 165 °C | Stainless Steel | 1 Connector 1 End Cap | Polytetrafluoroethylene (PTFE) | Gold | 250 V | 26 GHz | SSMA | 1 | Solder | Free Hanging (In-Line) Right Angle | Plug Male Pin | Beryllium Copper | 50 Ohms | Threaded | RG-405 (.085" Semi Rigid) | Solder | Gold Silver |
