FUS 600V F/A CLASS J 200A
Description
AI

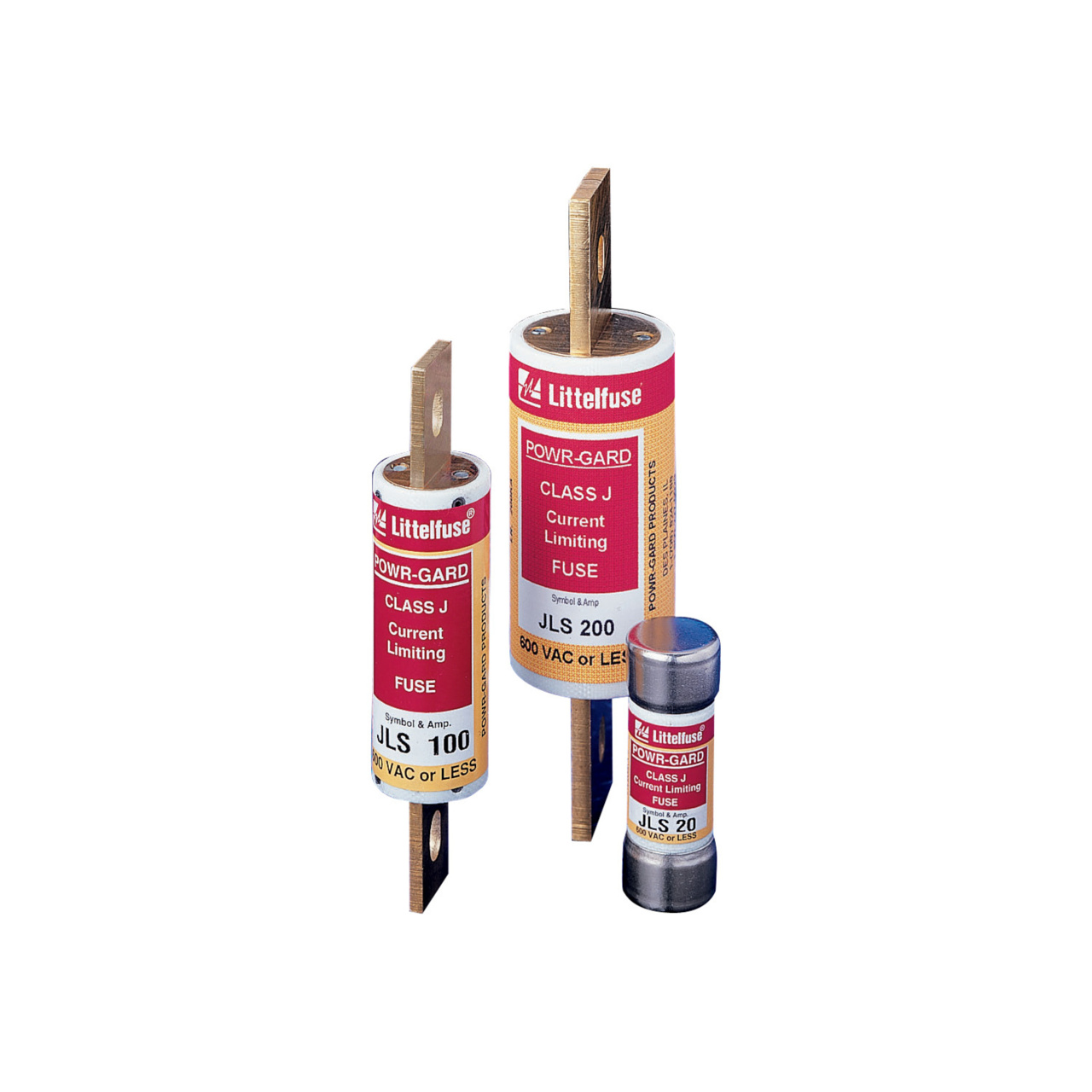

JLS200 is a Class J fuse with an ampere rating of 200 and knife-blade-style construction.
Beta
⌘K
FUS 600V F/A CLASS J 200A
FUS 600V F/A CLASS J 200A
| Part | Approval Agency | Breaking Capacity @ Rated Voltage | Applications | Package / Case | Class | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [x] | Fuse Type | Voltage Rating - AC | Response Time | Mounting Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | CE CSA QPL UL | 200 kA | Electrical Industrial | Cylindrical Blade Terminals | J | 3 " | 38.1 mm | 1.5 in | 76.2 mm | Cartridge | 600 VAC | Fast Blow | Requires Holder | 200 A |
