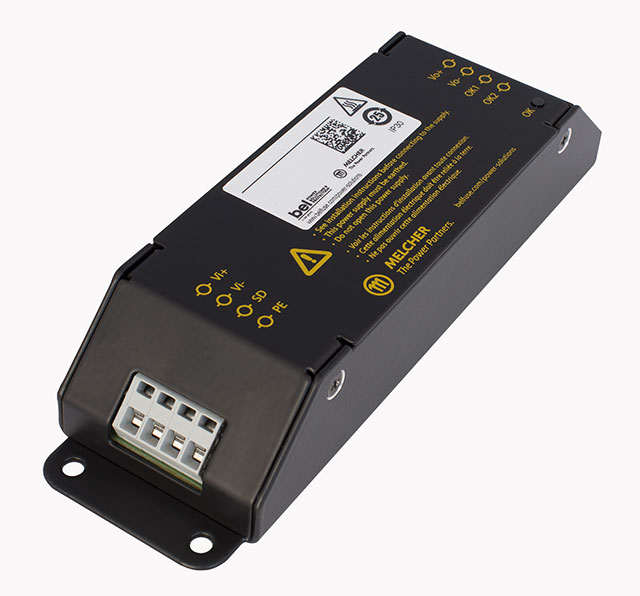

XRCM60 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
DC-DC CONVERTER, 12V, 5A ROHS COMPLIANT: YES
| Part | Mounting Type | Voltage - Isolation | Power (Watts) | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Output 1 | Number of Outputs | Approval Agency | Voltage - Input (Max) [Max] | Current - Output (Max) | Efficiency | Voltage - Input (Min) [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Chassis Mount | 4.2 kV | 60 W | ITE (Commercial) | 70 °C | -40 C | Conformal Coated Enclosed | 12 V | 1 | cCSAus CE | 137.5 V | 5 A | 87 % | 16.8 V | 32 mm | 1.97 in | 6.77 in | 50 mm | 172 mm | 1.26 " | |
 Bel Fuse Inc. | Chassis Mount | 4.2 kV | 60 W | ITE (Commercial) | 70 °C | -40 C | Conformal Coated Enclosed | 24 V | 1 | cCSAus CE | 137.5 V | 88 % | 16.8 V | 32 mm | 1.97 in | 6.77 in | 50 mm | 172 mm | 1.26 " | 2.5 A |
