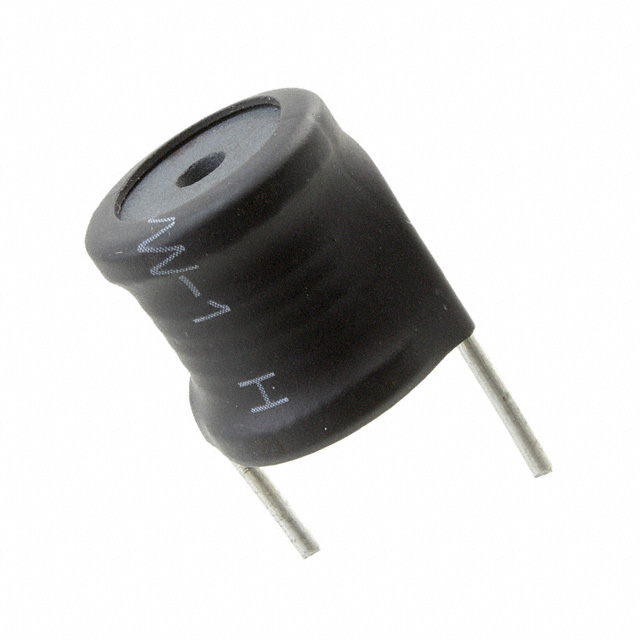

AIRD-02 Series
Manufacturer: Abracon LLC
Beta
⌘K
POWER INDUCTORS - LEADED IND 3.90 UH 11.400 A 5.00 MOHM
| Part | DC Resistance (DCR) [Max] | Size / Dimension [diameter] | Size / Dimension [diameter] | Package / Case | Shielding | Current Rating (Amps) | Inductance Frequency - Test | Tolerance | Material - Core | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current - Saturation (Isat) | Inductance | Type | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 30 mOhm | 0.827 in | 21 mm | Radial Vertical Cylinder | Unshielded | 5.5 Amps | 1 kHz | 10 % | Ferrite | 85 °C | -25 °C | Through Hole | 17 A | 39 µH | Drum Core Wirewound | 0.827 " | 21 mm |
 Abracon LLC | 0.827 in | 21 mm | Radial Vertical Cylinder | Unshielded | 4 A | 1 kHz | 10 % | Ferrite | 85 °C | -25 °C | Through Hole | 8.6 A | 150 µH | Drum Core Wirewound | 0.827 " | 21 mm | |
Abracon LLC | 18 mOhm | 0.827 in | 21 mm | Radial Vertical Cylinder | Unshielded | 7.2 A | 1 kHz | 10 % | Ferrite | 85 °C | -25 °C | Through Hole | 22 A | 18 µH | Drum Core Wirewound | 0.827 " | 21 mm |
