039744 Series

Manufacturer: Molex

Catalog

TERM BLK 3POS TOP ENTRY 5MM PCB

Part	Torque - Screw	Torque - Screw	Mounting Type	Voltage	Wire Gauge [Max]	Wire Gauge [Min]	Pitch [x]	Pitch [x]	Color	Current	Positions Per Level	Number of Levels	Operating Temperature [Min]	Operating Temperature [Max]	Screw Thread	Clamp Material - Plating	Screw Material - Plating	Mating Orientation	Wire Termination	Contact Material - Plating [custom]
Molex 0397440003	4.4 Lb-In	0.5 Nm	Through Hole	300 V	30 AWG	12 AWG	5 mm	0.197 in	Green	20 A	3	1	-40 °C	105 ░C	M2.5	Steel Zinc Plated	Steel Zinc Plated	Vertical with Board	Screw - Pressure Clip	Brass - Tin Plated
Molex 0397440011	4.4 Lb-In	0.5 Nm	Through Hole	300 V	30 AWG	12 AWG	5 mm	0.197 in	Green	20 A	11	1	-40 °C	105 ░C	M2.5	Steel Zinc Plated	Steel Zinc Plated	Vertical with Board	Screw - Pressure Clip	Brass - Tin Plated
Molex 0397440004	4.4 Lb-In	0.5 Nm	Through Hole	300 V	30 AWG	12 AWG	5 mm	0.197 in	Green	20 A	4	1	-40 °C	105 ░C	M2.5	Steel Zinc Plated	Steel Zinc Plated	Vertical with Board	Screw - Pressure Clip	Brass - Tin Plated
Molex 0397440007	4.4 Lb-In	0.5 Nm	Through Hole	300 V	30 AWG	12 AWG	5 mm	0.197 in	Green	20 A	7	1	-40 °C	105 ░C	M2.5	Steel Zinc Plated	Steel Zinc Plated	Vertical with Board	Screw - Pressure Clip	Brass - Tin Plated
Molex 0397440010	4.4 Lb-In	0.5 Nm	Through Hole	300 V	30 AWG	12 AWG	5 mm	0.197 in	Green	20 A	10	1	-40 °C	105 ░C	M2.5	Steel Zinc Plated	Steel Zinc Plated	Vertical with Board	Screw - Pressure Clip	Brass - Tin Plated
Molex 0397440006	4.4 Lb-In	0.5 Nm	Through Hole	300 V	30 AWG	12 AWG	5 mm	0.197 in	Green	20 A	6	1	-40 °C	105 ░C	M2.5	Steel Zinc Plated	Steel Zinc Plated	Vertical with Board	Screw - Pressure Clip	Brass - Tin Plated

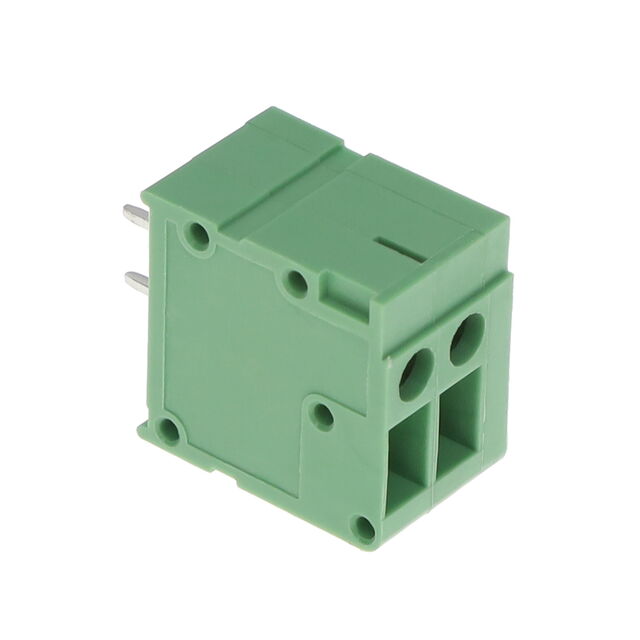

Molex 0397440002	4.4 Lb-In	0.5 Nm	Through Hole	300 V	30 AWG	12 AWG	5 mm	0.197 in	Green	20 A	2	1	-40 °C	105 ░C	M2.5	Steel Zinc Plated	Steel Zinc Plated	Vertical with Board	Screw - Pressure Clip	Brass - Tin Plated
