T41455 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

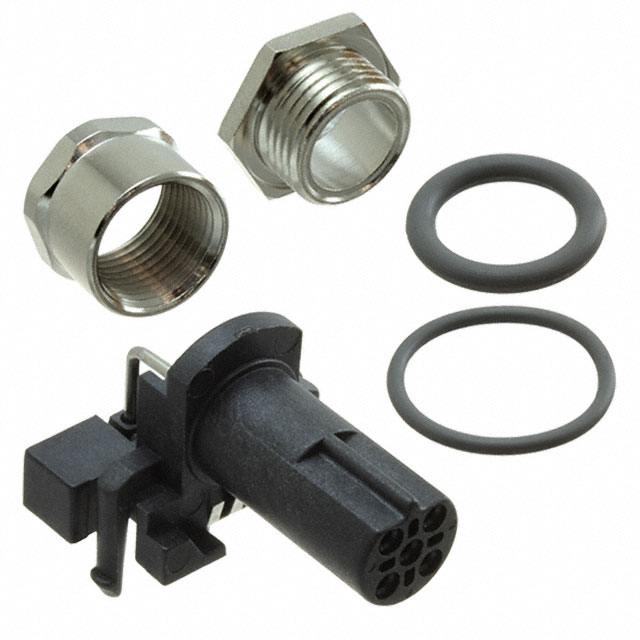

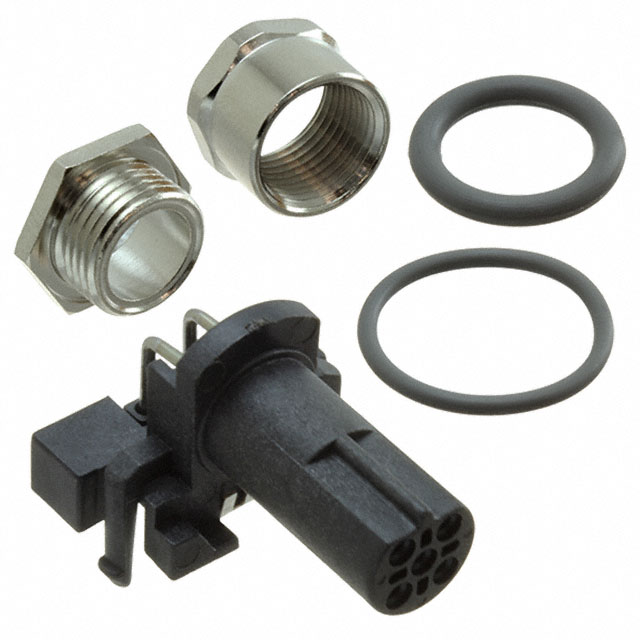

SENSOR CONNECTOR, M12, RECEPTACLE, 4 CONTACTS, PCB SOCKET, RIGHT ANGLE PANEL MOUNT

Part	Applications	Contact Finish - Mating	Mounting Feature	Color	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Features	Shell Finish	Fastening Type	Contact Material	Shell Material	Orientation	Shielding	Voltage Rating	Mounting Type	Contact Finish Thickness - Mating	Insert Material	Ingress Protection	Current Rating (Amps)	Shell Size - Insert	Primary Material	Connector Type	Number of Positions

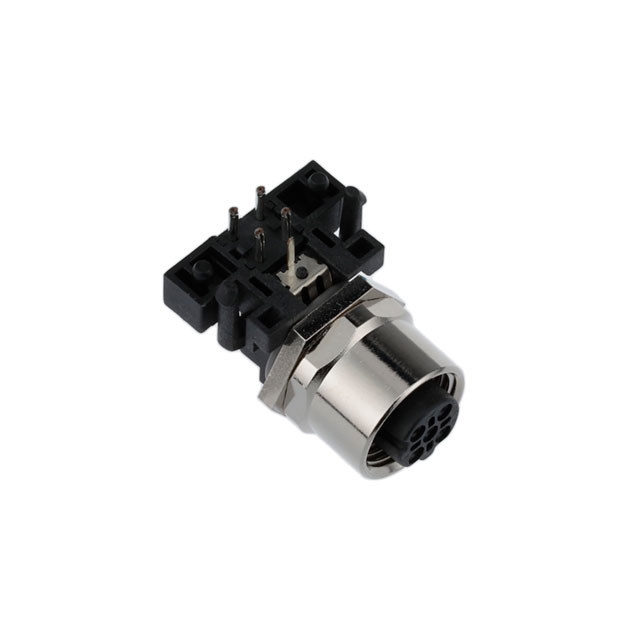

TE Connectivity AMP Connectors T4145535041-001	Industrial	Gold	Bulkhead - Rear Side Nut	Silver	Solder	85 °C	-40 C	Board Guide Board Lock	Nickel	Threaded	Copper Alloy	Copper Alloy	D	Shielded	250 V	Panel Mount Right Angle Through Hole	Flash	Nylon 6/6 Polyamide (PA66)	IP67 - Dust Tight Waterproof	4 A	M12-4	Metal	Plug Female Sockets	4
TE Connectivity AMP Connectors T4145515021-001	Industrial	Gold	Bulkhead - Rear Side Nut	Silver	Solder	85 °C	-40 C	Board Guide Board Lock	Nickel	Threaded	Copper Alloy	Copper Alloy	D	Unshielded	250 V	Panel Mount Right Angle Through Hole	Flash	Nylon 6/6 Polyamide (PA66)	IP67 - Dust Tight Waterproof	4 A	M12-2	Metal	Plug Female Sockets	2
TE Connectivity AMP Connectors T4145515041-001	Industrial	Gold	Bulkhead - Rear Side Nut	Silver	Solder	85 °C	-40 C	Board Guide Board Lock	Nickel	Threaded	Copper Alloy	Copper Alloy	D	Unshielded	250 V	Panel Mount Right Angle Through Hole	Flash	Nylon 6/6 Polyamide (PA66)	IP67 - Dust Tight Waterproof	4 A	M12-4	Metal	Plug Female Sockets	4

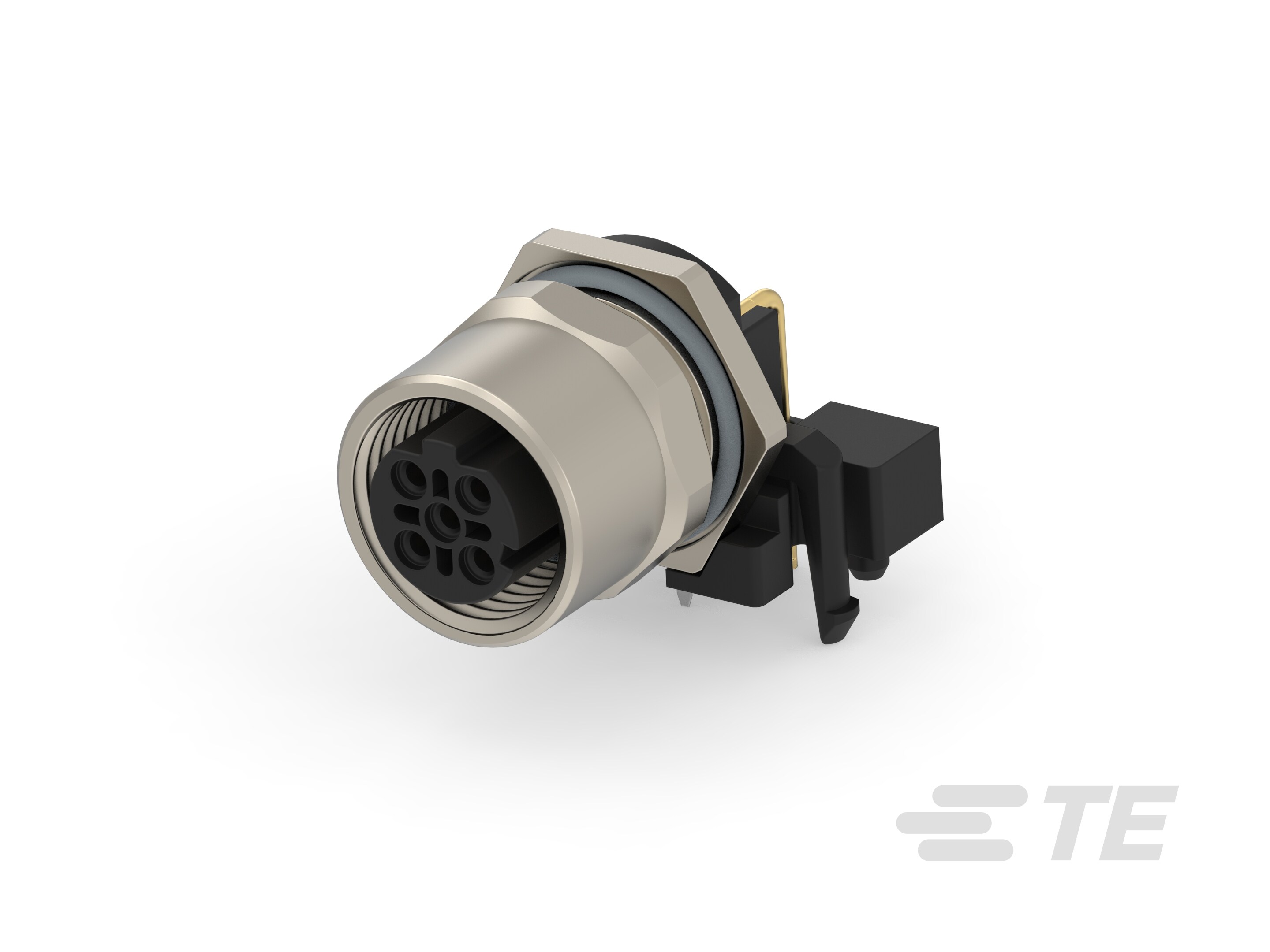

TE Connectivity AMP Connectors T4145535051-001	Industrial	Gold	Bulkhead - Rear Side Nut	Silver	Solder	85 °C	-40 C	Board Guide Board Lock	Nickel	Threaded	Copper Alloy	Copper Alloy	D	Shielded	60 VDC	Panel Mount Right Angle Through Hole	Flash	Nylon 6/6 Polyamide (PA66)	IP67 - Dust Tight Waterproof	4 A	M12-5	Metal	Plug Female Sockets	5

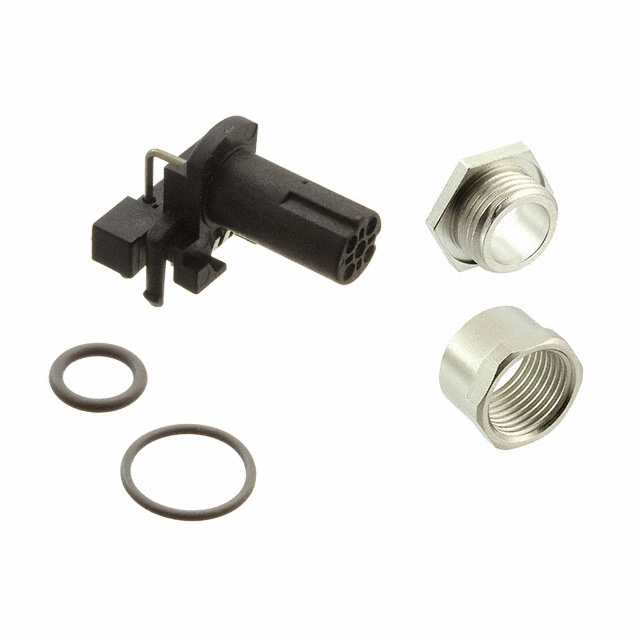

TE Connectivity AMP Connectors T4145515031-001	Industrial	Gold	Bulkhead - Rear Side Nut	Silver	Solder	85 °C	-40 C	Board Guide Board Lock	Nickel	Threaded	Copper Alloy	Copper Alloy	D	Unshielded	250 V	Panel Mount Right Angle Through Hole	Flash	Nylon 6/6 Polyamide (PA66)	IP67 - Dust Tight Waterproof	4 A	M12-3	Metal	Plug Female Sockets
TE Connectivity AMP Connectors T4145515051-001	Industrial	Gold	Bulkhead - Rear Side Nut	Silver	Solder	85 °C	-40 C	Board Guide Board Lock	Nickel	Threaded	Copper Alloy	Copper Alloy	D	Unshielded	60 VDC	Panel Mount Right Angle Through Hole	Flash	Nylon 6/6 Polyamide (PA66)	IP67 - Dust Tight Waterproof	4 A	M12-5	Metal	Plug Female Sockets	5
TE Connectivity AMP Connectors T4145535021-001	Industrial	Gold	Bulkhead - Rear Side Nut	Silver	Solder	85 °C	-40 C	Board Guide Board Lock	Nickel	Threaded	Copper Alloy	Copper Alloy	D	Shielded	250 V	Panel Mount Right Angle Through Hole	Flash	Nylon 6/6 Polyamide (PA66)	IP67 - Dust Tight Waterproof	4 A	M12-2	Metal	Plug Female Sockets	2
