LCCX2 Series

Catalog

COPPER COMPRESSION LUG, 2 HOLE, #2 AWG F ROHS COMPLIANT: YES

Part	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Contact Material	Wire Gauge	Tab Thickness	Tab Thickness	Terminal Type	Stud/Tab Size	Insulation	Termination	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Contact Finish	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Terminal Style	Mounting Type	Color	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Width - Outer Edges	Width - Outer Edges	Width - Outer Edges [x]	Width - Outer Edges [x]	Diameter - Barrel OD [diameter]	Diameter - Ring ID [diameter]	Width - Outer Edges [y]	Length - Overall

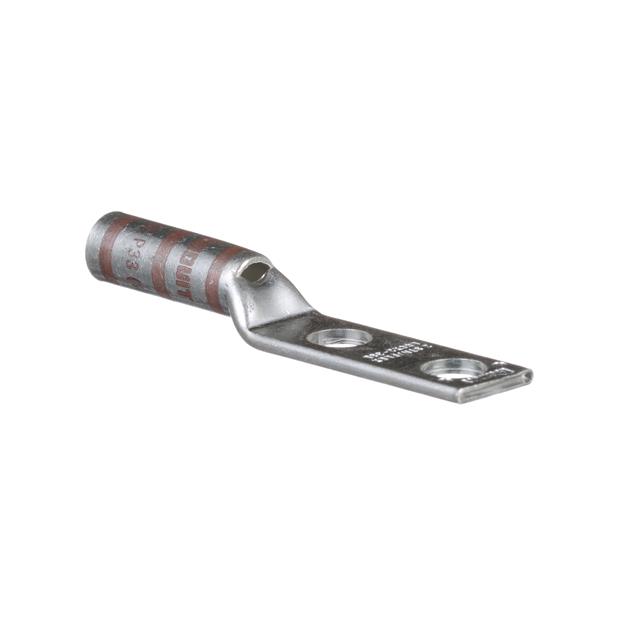

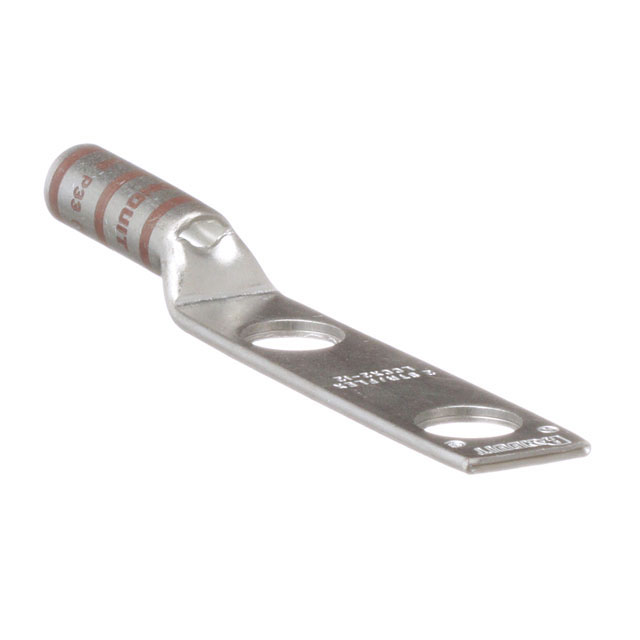

Panduit Corp LCCX2-12-E	0.36 in	9.14 mm	Copper	2 AWG	2.29 mm	0.09 in	Rectangular Tongue	1/2 Stud	Non-Insulated	Barrel Crimp	0.53 in	13.46 mm	0.75 in	19.05 mm	Electro-Tin	0.47 in	11.94 mm	Two Stud Holes	Free Hanging (In-Line)	Brown	4.63 in	117.6 mm
Panduit Corp LCCXF2-14B-E				2 AWG			Rectangular Tongue		Non-Insulated									Two Stud Holes					0.25 Stud
Panduit Corp LCCX1/0-12F-X	0.45 in	11.43 mm	Copper	44 AWG	3.3 mm	0.13 in	Rectangular Tongue	1/2 Stud	Non-Insulated	Barrel Crimp	0.53 in	13.46 mm	0.85 in	21.59 mm	Electro-Tin	0.58 in	14.73 mm	Two Stud Holes	Free Hanging (In-Line) Right Angle	Pink

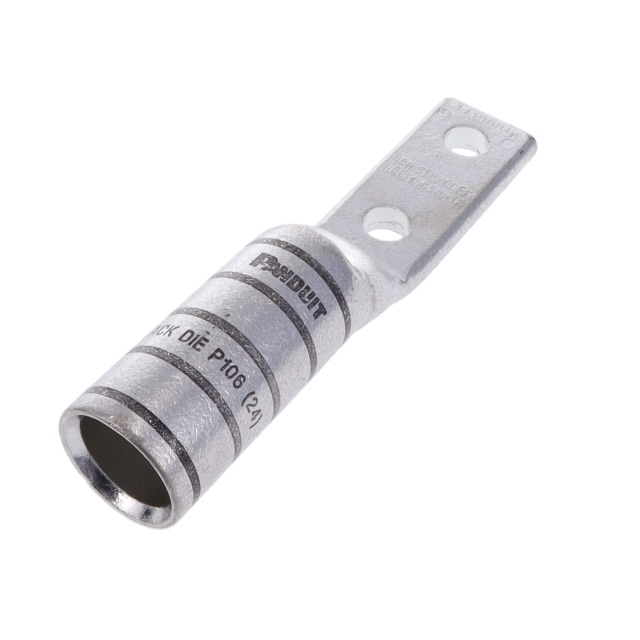

Panduit Corp LCCXN650-12-6	1.05 in	26.67 mm	Copper	650 MCM (kcmil)	9.14 mm	0.36 in	Rectangular Tongue	1/2 Stud	Non-Insulated	Barrel Crimp	0.53 in	13.46 mm			Electro-Tin	1.35 in	34.29 mm	Two Stud Holes	Free Hanging (In-Line)	Black	6.78 "	172.21 mm		1.35 in	34.29 mm

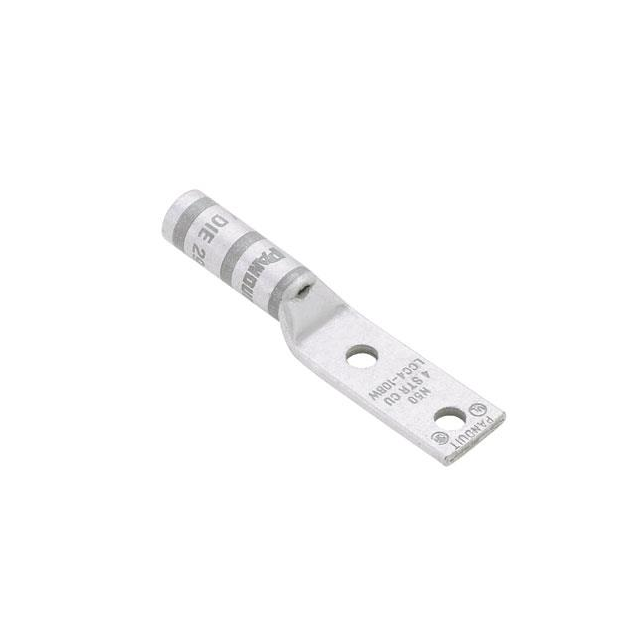

Panduit Corp LCCX8-10AB-L	0.18 in	4.57 mm	Copper	8 AWG	2.03 mm	0.08 in	Rectangular Tongue		Non-Insulated	Barrel Crimp					Electro-Tin	0.27 in	6.86 mm	Two Stud Holes	Free Hanging (In-Line)	Red	2.14 in	54.36 mm	10 Stud			10.41 mm	0.41 "

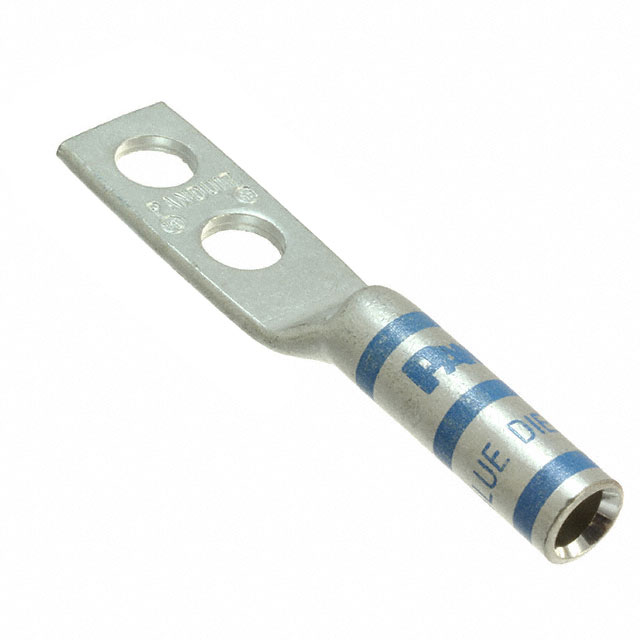

Panduit Corp LCCX6-38A-L	0.22 in	5.59 mm	Copper	6 AWG	1.52 mm	0.06 in	Rectangular Tongue	3/8 Stud	Non-Insulated	Barrel Crimp	10.41 mm		0.62 in	15.75 mm	Electro-Tin		0.31 in	Two Stud Holes	Free Hanging (In-Line)	Blue	2.71 in	68.83 mm						7.87 mm	0.41 "

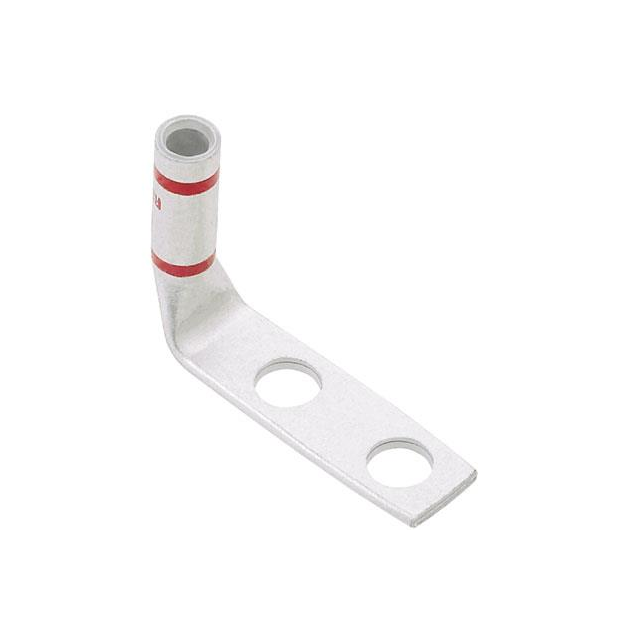

Panduit Corp LCCX8-10AF-L	0.18 in	4.57 mm	Copper	8 AWG	2.03 mm	0.08 in	Rectangular Tongue		Non-Insulated	Barrel Crimp	5.08 mm				Electro-Tin	0.27 in	6.86 mm	Two Stud Holes	Free Hanging (In-Line) Right Angle	Red			10 Stud			10.41 mm	0.41 "		0.2 in
Panduit Corp LCCX2/0-38D-X	0.51 in	12.95 mm	Copper		3.3 mm	0.13 in	Rectangular Tongue	3/8 Stud	Non-Insulated	Barrel Crimp	10.41 mm		0.96 in	24.38 mm	Electro-Tin	0.64 "	16.26 mm	Two Stud Holes	Free Hanging (In-Line)	Black	3.7 in	93.98 mm							0.41 "
Panduit Corp LCCX2-38D-E	0.36 in	9.14 mm	Copper	2 AWG	2.79 mm	0.11 in	Rectangular Tongue	3/8 Stud	Non-Insulated	Barrel Crimp	10.41 mm			0.7 "	Electro-Tin	0.47 in	11.94 mm	Two Stud Holes	Free Hanging (In-Line)	Brown	3.46 in	87.88 mm							0.41 "	17.78 mm

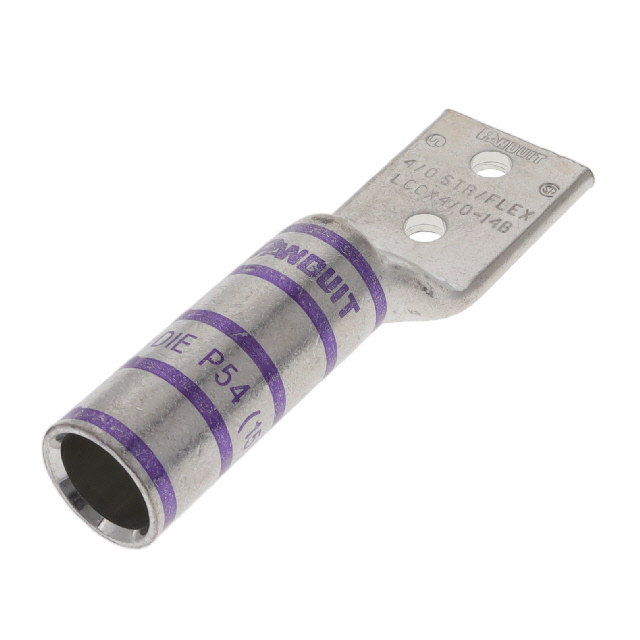

Panduit Corp LCCX4/0-14B-X			Copper	4 aught AWG	4.06 mm	0.16 in	Rectangular Tongue		Non-Insulated	Barrel Crimp			1.19 in	30.23 mm	Electro-Tin			Two Stud Holes	Free Hanging (In-Line)	Purple	4.07 "		0.25 Stud								103.38 mm
