9402MN Series

Catalog

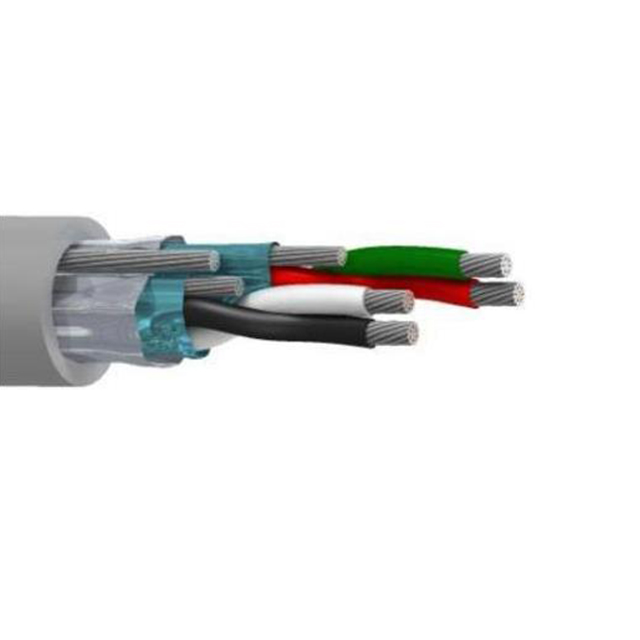

MULTI-PAIR 4CON 20AWG GRAY

Part	Shield Coverage	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Shield Type	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Usage	Voltage	Wire Gauge	Ratings	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	Cable Type	Number of Conductors	Length [x]	Length [x]
Belden Inc. 9402MN 0081000	100 %	Aluminum	0.254 in	6.45 mm	Copper Tinned	Drain Wire	0.406 mm	0.016 in	Poly-Vinyl Chloride (PVC)	Foil	Gray	26	34 AWG	Polypropylene (PP)	Audio Control Instrumentation	300 VDC	20 AWG	UL Style 2937	80 °C	-20 ░C	304.8 m	1000 ft	Multi-Pair	4
Belden Inc. 9402MN 0061000	100 %	Aluminum	0.254 in	6.45 mm	Copper Tinned	Drain Wire	0.406 mm	0.016 in	Poly-Vinyl Chloride (PVC)	Foil	Blue	26	34 AWG	Polypropylene (PP)	Audio Control Instrumentation	300 VDC	20 AWG	UL Style 2937	80 °C	-20 ░C	304.8 m	1000 ft	Multi-Pair	4
Belden Inc. 9402MN 008100	100 %	Aluminum	0.254 in	6.45 mm	Copper Tinned	Drain Wire	0.406 mm	0.016 in	Poly-Vinyl Chloride (PVC)	Foil	Gray	26	34 AWG	Polypropylene (PP)	Audio Control Instrumentation	300 VDC	20 AWG	UL Style 2937	80 °C	-20 ░C			Multi-Pair	4	100 ft	30.5 m
